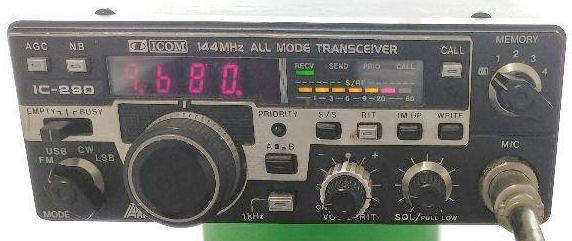

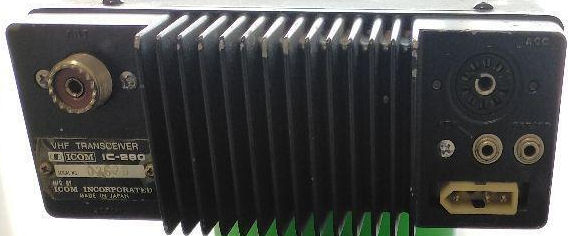

Icom IC-290
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz (5/1/0.1 KHz steps) |
| Modes: |
FM/SSB/CW |
| RF Power output: |
Hi: 25 W
Lo: 1 W |
| Sensitivity: |
FM: <0.6 uV for 20 dB noise quieting
SSB/CW: <0.5 uV (10 dB S+N/N) |
| Selectivity: |
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
SSB/CW: 2.4 KHz (-6 dB), 4.8 KHz (-60 dB) |
| Image rejection: |
>60 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 700-900 mA
TX: 1.6-5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
170 x 64 x 218 mm |
| Weight: |
2.6 Kg |
| Manufactured: |
Japan, 1983-198x |
| Other: |
|
| Related Documents: |
|
 |
