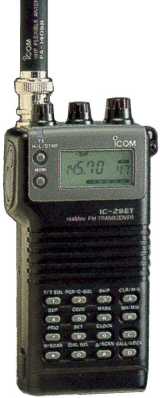

Icom IC-2SET
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 138-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 5 W
Lo3: 3.5 W
Lo2: 1.5 W
Lo1: 500 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.2 VDC |
| Current Drain: |
RX: Max ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
49*103*35 mm |
| Weight: |
280 gr |
| Manufactured: |
1989-19xx |
| Other: |
Keyboard |
| Related Documents: |
|
|
