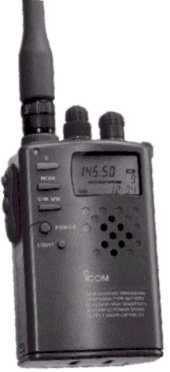

Icom IC-2iE
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 138-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 5 W
Lo3: 2.5 W
Lo2: 500 mW
Lo1: 20 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6-16 VDC |
| Current Drain: |
RX: 16-150 mA
TX: Max 1.4 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
58*91*30 mm (with BP-121) |
| Weight: |
260 gr (with BP-121) |
| Manufactured: |
1992-19xx |
| Other: |
|
| Related Documents: |
|
|
