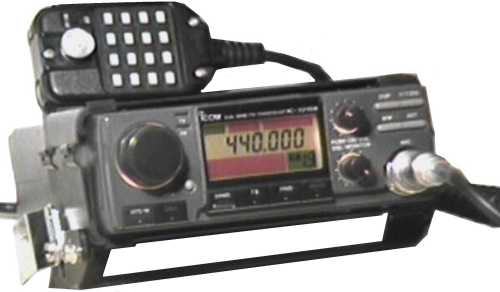

Icom IC-3210A
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 440-450 MHz
RX: 138-174 / 400-470 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 25/25 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 550-900 mA
TX: Max 7.6 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*50*180 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
Japan, 1988-1990 |
| Other: |
|
| Related Documents: |
User Manual (3 Mb)
Service manual (16 Mb) |
|
