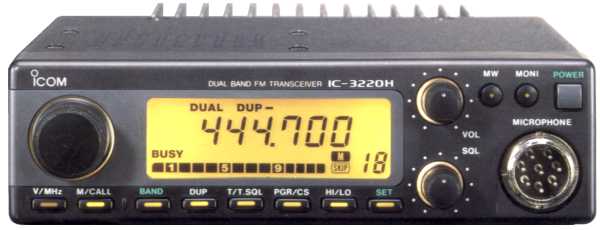

Icom IC-3220H
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146/430-440 MHz (Europe)
140-150/440-450 MHz (USA) |
| Modes: |
FM |
| RF Power output: |
Hi: 45/35 W
Lo2: 10/10 W
Lo1: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.8-1.2 A
TX: Max 10 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
140*40*195 mm |
| Weight: |
1.4 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
36 memories |
| Related Documents: |
User Manual (1.8 MB) |
|
