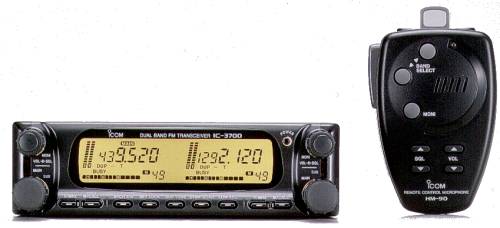

Icom IC-3700
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
430-440 / 1240-1300 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 10/10 W
Mid: 10/10 W
Lo: 5/1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1.8 A
TX: Max 11.5 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
140*40*177 mm |
| Weight: |
1.5 Kg |
| Manufactured: |
199x-19xx |
| Other: |
|
