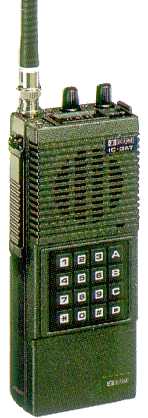

Icom IC-3AT
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
220-225 MHz (10 KHz steps) |
| Modes: |
FM |
| RF Power output: |
Hi: 1.5 W
Lo: 150 mW |
| Voltage: |
6-10.8 VDC |
| Current Drain: |
RX: Max ? mA
TX: Max 550 mA |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
65*117*35 mm (without battery) |
| Weight: |
? gr |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
User Manual (491 KB) |
|
