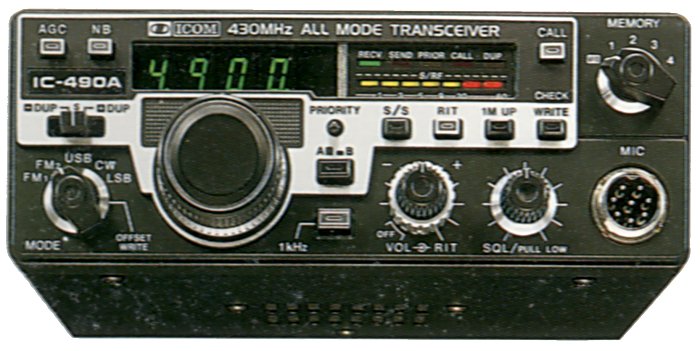

Icom IC-490A
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max 3.6 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
170*64*218 mm |
| Weight: |
2.6 Kg |
| Manufactured: |
198x-19xx |
| Other: |
4 memories. Dual VFO's. Scanning |
