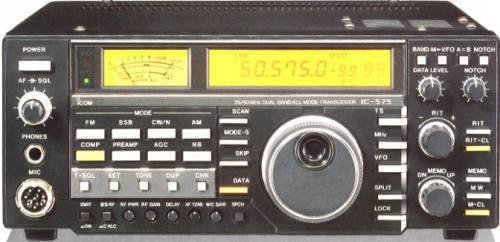

Icom IC-575
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 28-29.7/50-54 MHz
RX: 26-56 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
1-10 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: 1.4-1.6 A
TX: Max 5.2 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*95*239 mm |
| Weight: |
6.1 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
