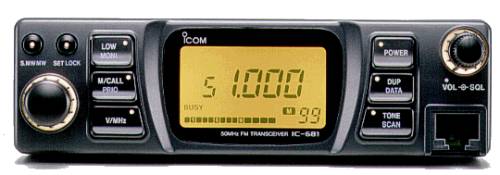

Icom IC-681
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
50-54 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 10 W
Mid: 3 W
Lo: 0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1 A
TX: Max 3.8 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
140*40*124 mm |
| Weight: |
800 gr |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
|
|
