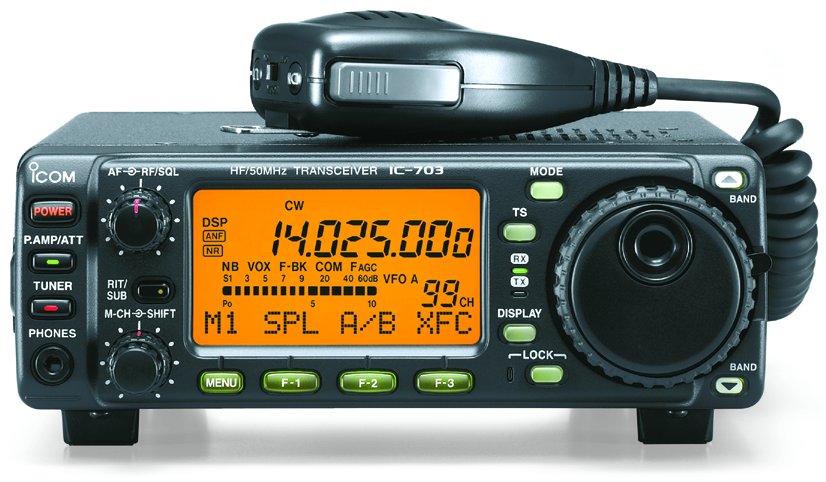

| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
10-160 m + WARC/6 m |
| Modes: |
AM/FM/SSB/CW/RTTY |
| RF Power output: |
0.1-10 / 0.1-10 W in 5 steps |
| Sensitivity: |
SSB/CW/RTTY: 0.16 uV (10 dB S/N @ 1.8-30 MHz)
AM: 13 uV (10 dB S/N @ 0.5-1.8 MHz), 2 uV (10 dB S/N @ 1.8-30 MHz)
FM: 0.5 uV (12 dB SINAD @ 28-30 MHz) |
| Selectivity: |
N/A |
| Image rejection: |
Better than 70 dB |
| Voltage: |
9-15.9 VDC |
| Current Drain: |
RX: 250-450 mA
TX: Max 3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
167*58*200 mm |
| Weight: |
2 Kg |
| Manufactured: |
2002-20xx |
| Other: |
Built-in memory keyer and auto-AT. DSP
105 memories. |
| Related Documents: |
User Manual (7.95 MB)
60m Operation (38.6 MB)
Brochure (2.53 MB) |
