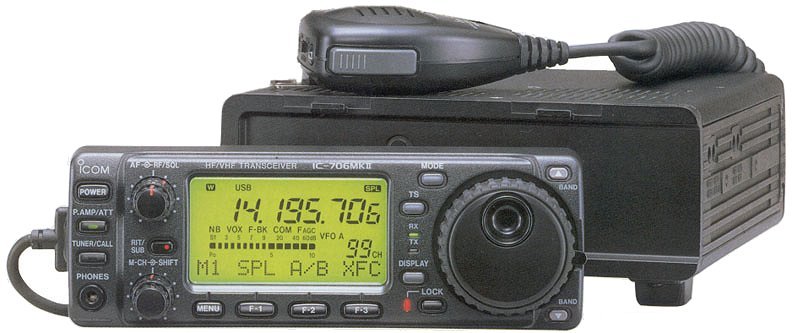

Icom IC-706MKII
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 / 144-146 MHz (Europe)
TX: 10-160 m + WARC / 50-54 / 144-148 MHz (USA)
RX: 0.03-200 MHz all-mode incl WFM |
| Modes: |
AM/FM/SSB/CW/RTTY |
| RF Power output: |
100/100/20 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1.8 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 (HF/6 m), SO-239 (2 m) |
| Dimensions (W*H*D): |
167*58*200 mm |
| Weight: |
2.5 Kg |
| Manufactured: |
Japan, 1997-19xx |
| Other: |
|
| Related Documents: |
User Manual (5.7 MB) |
|
