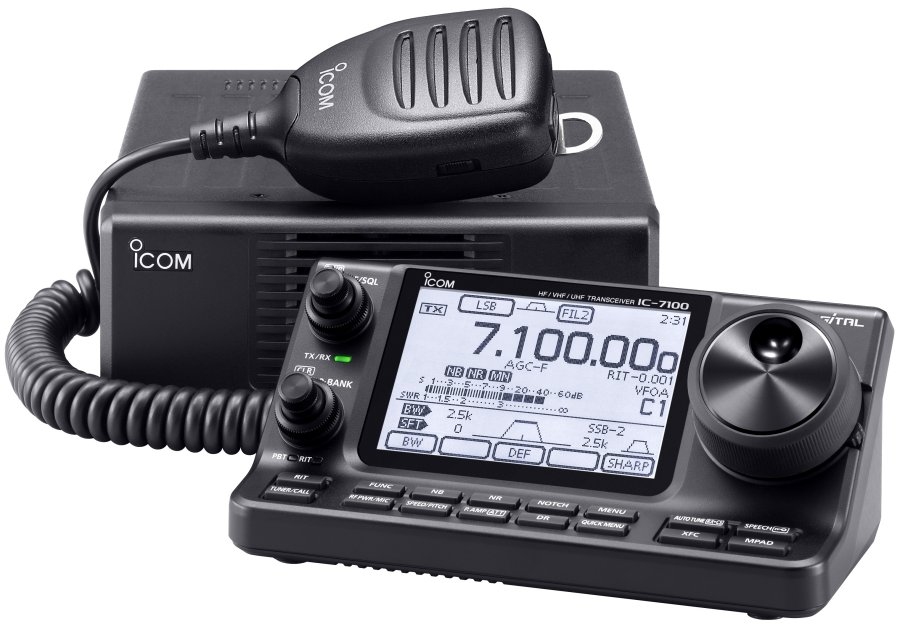

| Type: |
Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 6 m / 2 m / 70 cm (and 70 MHz in Europe)
RX: 0.03-200 / 400-470 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY/DV (D-Star) + (WFM RX Only) |
| RF Power output: |
FM/SSB/CW/RTTY: 2-100 / 2-100 / 2-50 / 1-35 W / (2-50 W on 70 MHz)
AM: 1-40 W (HF) |
| Sensitivity: |
AM (10 dB S/N)
0.5-1.8 MHz: 13 uV
1.8-29.9 MHz: 2 uV
50-54 MHz: 1 uV
144/440 MHz: 1 uV
FM (12 dB SINAD)
28-29.9 MHz: 0.5 uV
50-54 MHz: 0.25 uV
144/440 MHz: 0.18 uV
WFM (12 dB SINAD)
76-108 MHz: 10 uV
SSB/CW/RTTY (10 dB S/N)
1.8-29.9 MHz: 0.16 uV
50-54 MHz: 0.13 uV
144/440 MHz: 0.11 uV
DV (D-Star)
28-29.7 MHz: 1 uV
50-54 MHz: 0.63 uV
144/440 MHz: 0.35 uV
|
| Selectivity: |
AM (BW=6 KHz)
6 KHz (-6 dB), 15 KHz (-60 dB)
FM (BW=15 KHz)
12 KHz (-6 dB), 20 KHz (-60 dB)
SSB (BW=2.4 KHz, sharp)
2.4 KHz (-6 dB), 3.6 KHz (-60 dB)
CW (BW=500 Hz, sharp)
500 Hz (-6 dB), 900 Hz (-60 dB)
RTTY (BW=350 Hz)
360 Hz (-6 dB), 650 Hz (-60 dB) |
| Image rejection: |
HF: >70 dB
6 m/2 m/70 cm: 65 dB |
| Voltage: |
13.8 VDC+/-15% |
| Current Drain: |
RX: 1.2-1.5 A
TX: Max 22 A |
| Aerial Input: |
50 ohms, 2*SO-239 |
| Dimensions (W*H*D): |
RF unit: 167 x 58 x 225 mm
Controller: 165 x 64 x 78 mm |
| Weight: |
RF unit: 2.3 Kg
Controller: 500gr |
| Manufactured: |
Japan: 2012-20xx |
| Other: |
D-Star built-in. Dot-matrix touch-screen controller
495+10 memoriers. IF-DSP
Voice recorder. SD memory card slot
USB audio in/out. Remote control
Built-in SWR meter |
| Related Documents: |
Pre-Release Brochure (724 Kb) |
