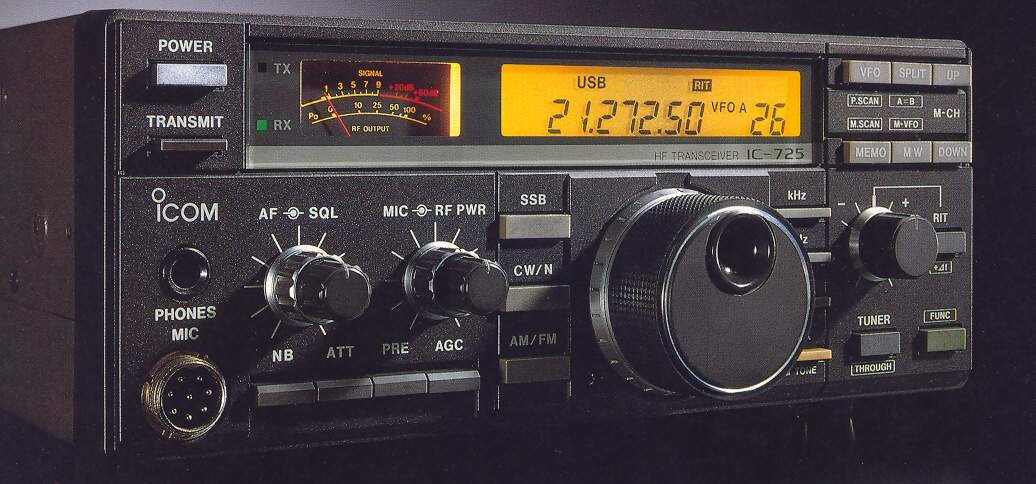

Icom IC-725
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.5-30 MHz |
| Modes: |
SSB/CW (AM/FM option) |
| RF Power output: |
100 W |
| Sensitivity: |
AM: <2 uV (10 dB S/N)
FM: <0.5 uV (12 dB SINAD)
SSB/CW: <0.15 uV (10 dB S/N) |
| Selectivity: |
AM: >6 KHz (-6 dB), <20 KHz (-60 dB)
FM: >15 KHz (-6 dB), <30 KHz (-60 dB)
SSB/CW: >2.3 KHz (-6 dB), <4 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.2-1.5 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
241*94*239 mm |
| Weight: |
4.7 Kg |
| Manufactured: |
1988-19xx |
| Other: |
|
| Related Documents: |
User Manual (3.2 MB) |
|
