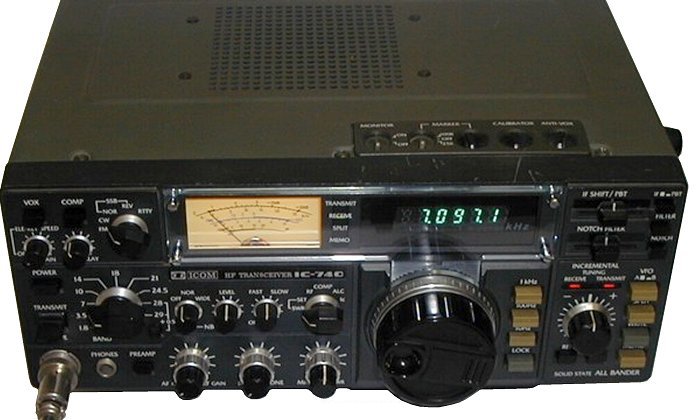

Icom IC-740
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
10-160 m + WARC |
| Modes: |
AM/SSB/CW (FM option) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| RF Power output: |
100 W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
286*111*374 mm |
| Weight: |
10.5 Kg (with built-in PSU) |
| Manufactured: |
1982-19xx |
| Other: |
Built-in PSU options |
| Related Documents: |
User Manual (4 MB) |
|
