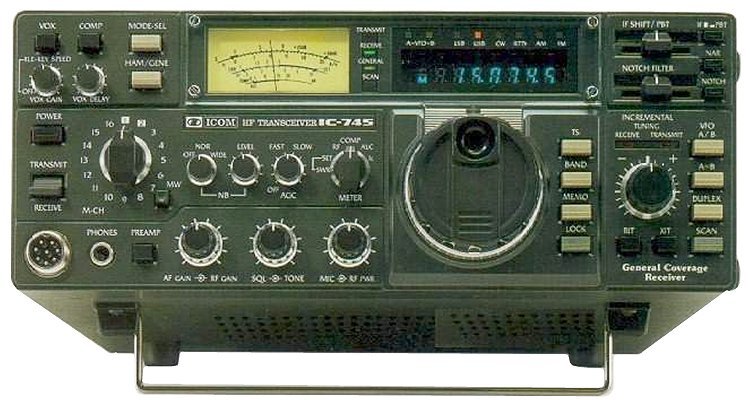

Icom IC-745
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
SSB/CW/AM |
| RF Power output: |
100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
? mm |
| Weight: |
? Kg |
| Manufactured: |
Japan, 1983-19xx |
| Other: |
FM option |
| Related Documents: |
User Manual (4.9 MB) |
|
