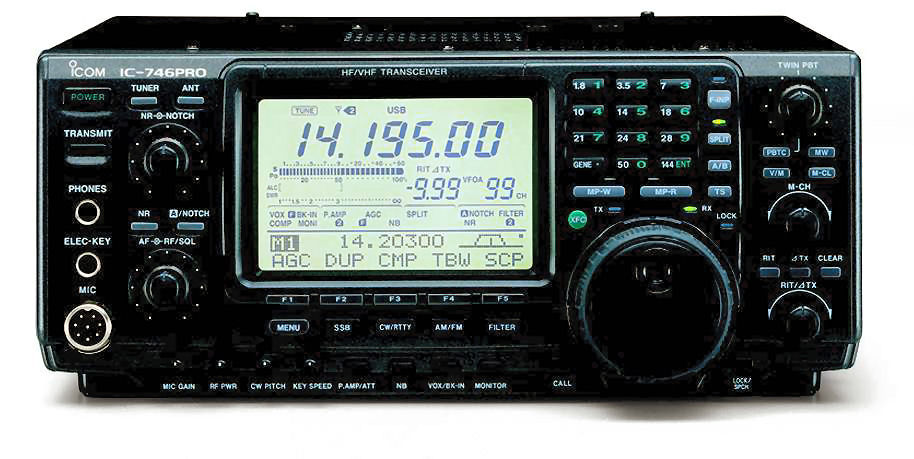

Icom IC-746 PRO
| Type:
|
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 / 144-148 MHz
RX: 0.03-60 / 108-174 MHz |
| Modes: |
AM/FM/SSB/CW/RTTY |
| RF Power output: |
5-100 W (AM: 5-40 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 2.2-3 A
TX: Max 23 A |
| Aerial Input: |
50 ohms, 3 x SO-239 |
| Dimensions (W*H*D): |
287*120*316 mm |
| Weight: |
9 Kg |
| Manufactured: |
Japan, 2001-200x |
| Other: |
32 bit DSP, CI-V
Auto-ATU: 17-150 ohms (HF), 20-125 ohms (6 m) |
| Related Documents: |
User Manual (5.37 MB)
Brochure (479 Kb) |
 |
