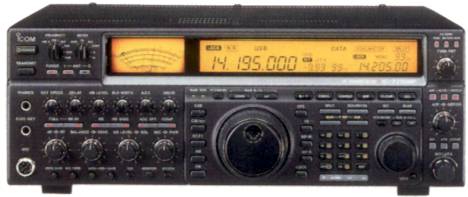

Icom IC-775
| Type:
|
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
5-200 W (AM 5-50 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
424*150*390 mm |
| Weight: |
16.7 Kg |
| Manufactured: |
Japan, 19xx-19xx |
| Other: |
Twin RX |
