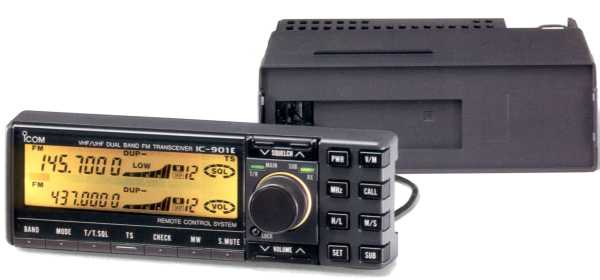

Icom IC-901E
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 50/35 W
Lo: 5/5 W |
| Sensitivity: |
0.18 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image rejection: |
>60 dB |
| Voltage: |
11-16 VDC |
| Current Drain: |
RX: 0.85-1.4 A
TX: Max 12 A |
| Aerial Input: |
50 ohms, SO-239 + N |
| Dimensions (W*H*D): |
150*50*191 mm |
| Weight: |
1.6 Kg |
| Manufactured: |
1989-19xx |
| Other: |
10m (UX-19E), 6m (UX-59A), 23cm (UX-129E), 2m SSB (UX-S92E)
and MW/76-950 MHz RX (UX-R91A) options. Twin RX |
| Related Documents: |
User Manual (6.8 MB) |
|
