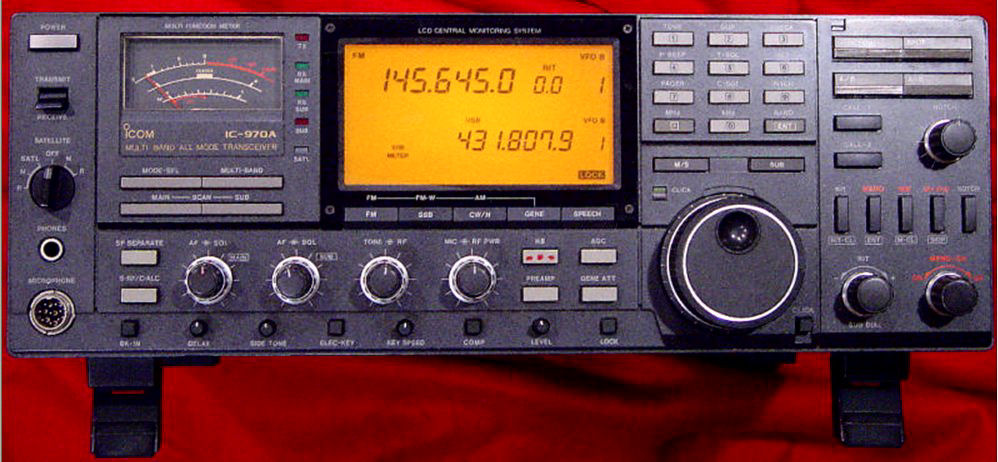

Icom IC-970A
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
140.1-150 / 430-450 MHz
(10 Hz, 5, 10, 12., 20, 25, 100 KHz Steps) |
| Modes: |
FM/SSB/CW |
| RF Power output: |
3.5-25 / 3.5-25 W |
| Sensitivity: |
FM: 0.18 uV (12 dB SINAD)
SSB/CW: 0.11 uV (10 dB S/N) |
| Selectivity: |
FM: 15 KHz (-6 dB), 30 KHz (-60 dB)
SSB/CW: 2.3 KHz (-6 dB), 4.2 KHz (-60 dB)
CW narrow (option): 500 Hz (-6 dB), 1.3 KHz (-60 dB) |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 2-2.5 A
TX: Max 9 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
425 x 149 x 406 mm |
| Weight: |
14.5 Kg (without PS-35)
16.8 Kg (with PS-35) |
| Manufactured: |
Japan, 1990-199x (Discontinued) |
| Other: |
23cm, 13cm, ATV and RX 50-905 MHz options. Twin RX |
| Related Documents: |
User Manual (5.1 MB) |
 |
