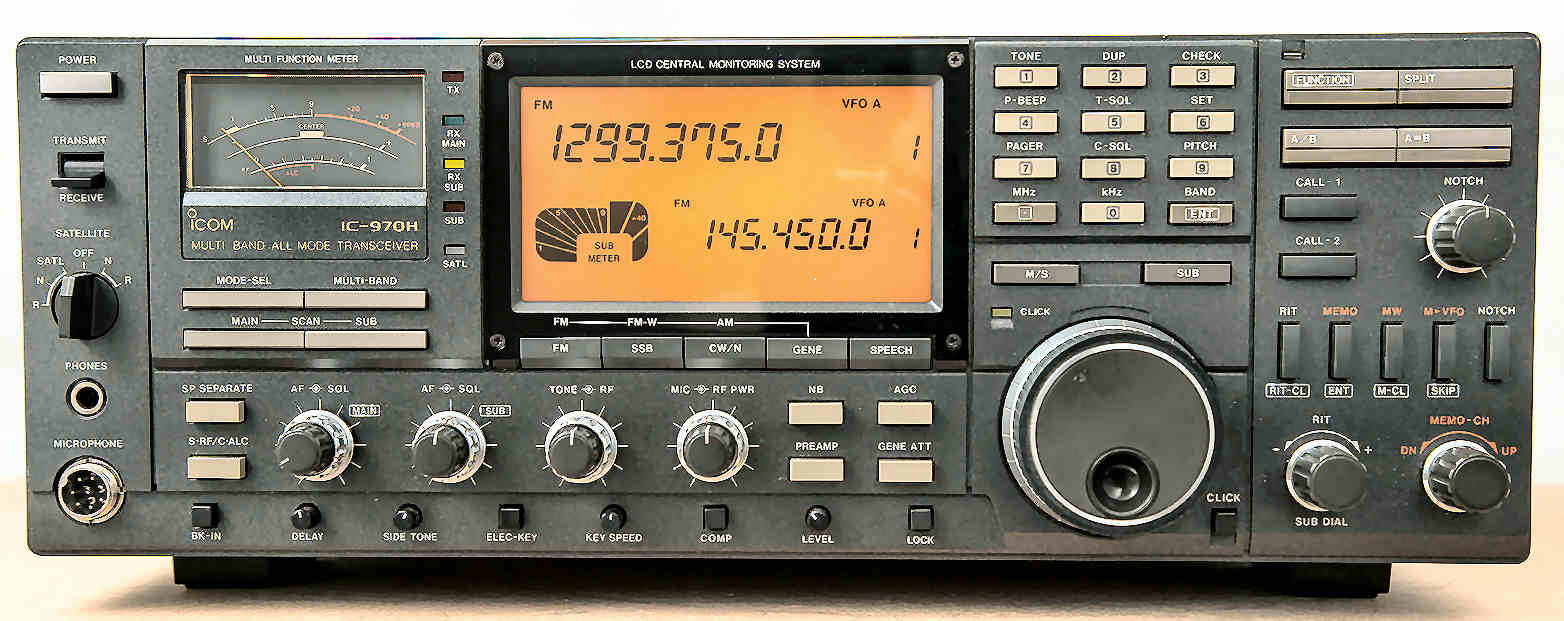

Icom IC-970H
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz |
| Modes: |
FM/SSB/CW |
| RF Power output: |
FM: 45/45 W
SSB/CW: 35/30 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max ? A
TX: Max ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
425*149*406 mm |
| Weight: |
15 Kg |
| Manufactured: |
1990-19xx |
| Other: |
23cm, 13cm, ATV and RX 50-905 MHz options. Twin RX |
| Related Documents: |
User Manual (5.1 MB) |
|
