| Type: |

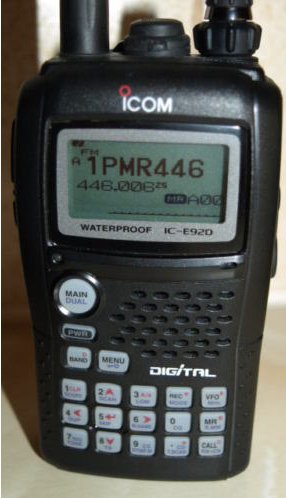

Amateur VHF/UHF transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz (Europe)
RX: 0.495-999 MHz
(5/6.25/8.33/9/10/12.5/15/20/25/30/50/100/125/200 KHz steps) |
| Mode: |
RX: AM/FM/NFM/WFM and DV (GMSK 4.8 kbps voice)
TX: FM/NFM and DV (GMSK 4.8 kbps voice) |
| RF Power output: |
Hi: 5 / 5 W
Mid1: 2.5 / 2.5 W
Mid2: 500/500 mW
Lo: 100 / 100 mW |
| Receiver system: |
Triple conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
3rd IF: ? KHz |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.4 VDC (battery pack)
10-16 VDC (external) |
| Current Drain: |
RX: ? mA
TX: ? A |
| Impedance: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*112*34 mm |
| Weight: |
300 gr (with BP-256) |
| Manufactured: |
Japan, 2008-200x |
| Other: |
D-Star concept. 1200 memories with Alpha tags.
CTCSS and DTCS.
Submersible (1 meter/30 minutes). Twin RX
Optional speaker-mike with built-in GPS receiver (HM-175GPS)
for extended D-Star functions |
| Related Documents: |
User Manual (15.38 MB) |
