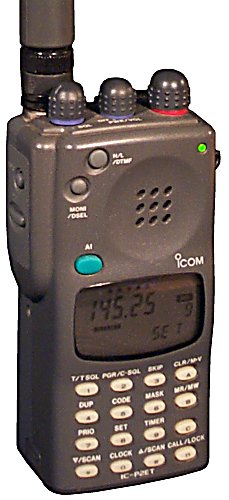

Icom IC-P2ET
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz
RX: 108-174 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 5 W
Lo3: 3.5 W
Lo2: 1.5 W
Lo1: 500 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7-14 VDC |
| Current Drain: |
RX: Max ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
49*105*39 mm (with BP-111) |
| Weight: |
280 gr (with BP-111) |
| Manufactured: |
1991-19xx |
| Other: |
Same as P2E but with keyboard |
