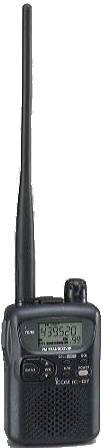

Icom IC-Q7E
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 30-1300 MHz |
| Modes: |
TX: FM
RX: AM/FM/WFM |
| RF Power output: |
350/300 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
3 VDC |
| Current Drain: |
RX: 38-170 mA
TX: Max 440 mA |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58*86*27 mm |
| Weight: |
170 gr (incl battery and antenna) |
| Manufactured: |
1998-2001 |
| Other: |
|
| Related Documents: |
User Manual (670 KB) |
|
