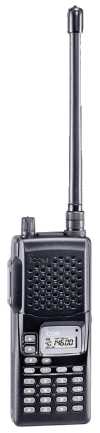

Icom IC-T2H
| Type:
|
Amateur VHF Transceiver |
| Frequency Range: |
TX: 144-146 MHz (Europe except Italy)
TX: 144-148 MHz (Italy and the rest of the world)
RX: 136-174 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 6 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
9.6 VDC |
| Current Drain: |
RX: 25-210 mA
TX: 0.7-1.6 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
58*141*32 mm |
| Weight: |
420 gr (without battery) |
| Manufactured: |
19xx-19xx |
| Other: |
|
| Related Documents: |
Instruction Manual (1.07 MB) |
|
