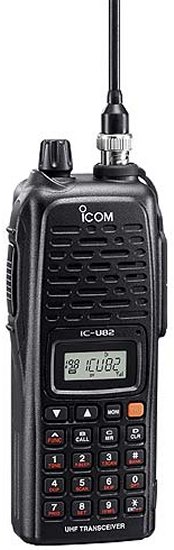

Icom IC-U82
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz |
| Modes: |
FM/NFM (GMSK/4.8 kbps digital voice option (UT-115/UT-118)) |
| RF Power output: |
Hi: 5 W
Mid: 2 W
Lo: 0.5 W |
| Sensitivity: |
0.16 uV (12 dB SINAD) |
| Selectivity: |
N/A |
| Image response: |
N/A |
| Voltage: |
6-10.3 VDC |
| Current Drain: |
RX: 30-250 mA
TX: 0.9-2 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
54*140*37 mm |
| Weight: |
390 gr (with ABP-222N) |
| Manufactured: |
Japan, 2004-200x |
| Other: |
207 memories. CTCSS/DTCS. GPS option. |
| Related Documents: |
|
|
