| Type:
|

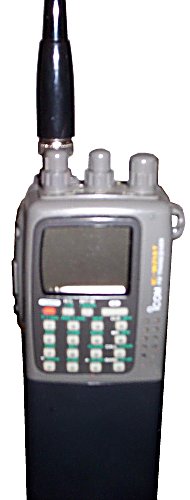

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 440-450 MHz
RX: 138-174 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 5/5 W (depending on voltage)
Lo3: 3.5 W
Lo2: 1.5 W
Lo1: 0.5
El: 15 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
7.2-12 VDC |
| Current Drain: |
RX: 15-150 mA
TX: Max 2.4 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
57*169*32 mm |
| Weight: |
440 gr (depending on battery type) |
| Manufactured: |
1992-19xx |
| Other: |
CTCSS. Keyboard. Cross band repeater function. Twin RX |
| Related Documents: |
User Manual (5.77 MB) |
