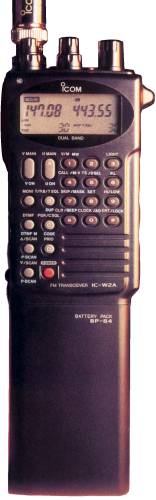

Icom IC-W2A
| Type:
|
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 440-450 MHz
RX: 136-174 / 400-470 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 5/5 W
Lo3: 3.5/3.5 W
Lo2: 1.5/1.5 W
Lo1: 0.5/0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6-16 VDC |
| Current Drain: |
RX: 20-200 mA
TX: Max 1.8 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
54*154*36 mm |
| Weight: |
450 gr (with BP-83) |
| Manufactured: |
1991-19xx |
| Other: |
60 memories. Twin RX |
| Related Documents: |
User Manual (3.9 MB)
Schematics (520 KB) |
|
