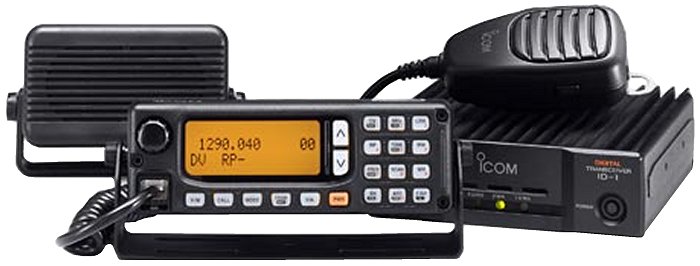

Icom ID-1
| Type:
|
Amateur UHF Transceiver |
| Frequency Range: |
1260-1300 MHz |
| Modes: |
FM and GMSK (4.8 kbps voice/128 kbps data) |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
FM: -16 dBu
4.8 kbps voice: -10 dBu
128 kbps data: +2 dBu |
| Selectivity: |
FM: 12 KHz (-6 dB), 30 KHz (-60 dB)
GMSK 4.8 kbps: 6 KHz (-6 dB)
GMSK 128 kbps: 140 KHz (-6 dB) |
| Image rejection: |
50 dB |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1.5 A
TX: Max 7 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
141*40*166 mm |
| Weight: |
1.2 Kg |
| Manufactured: |
Japan, 200x-200x |
| Other: |
D-Star concept. TCP/IP, E-mail, video & picture capable.
Via a 10BASE-T connector, it can be interfaced with the internet. |
