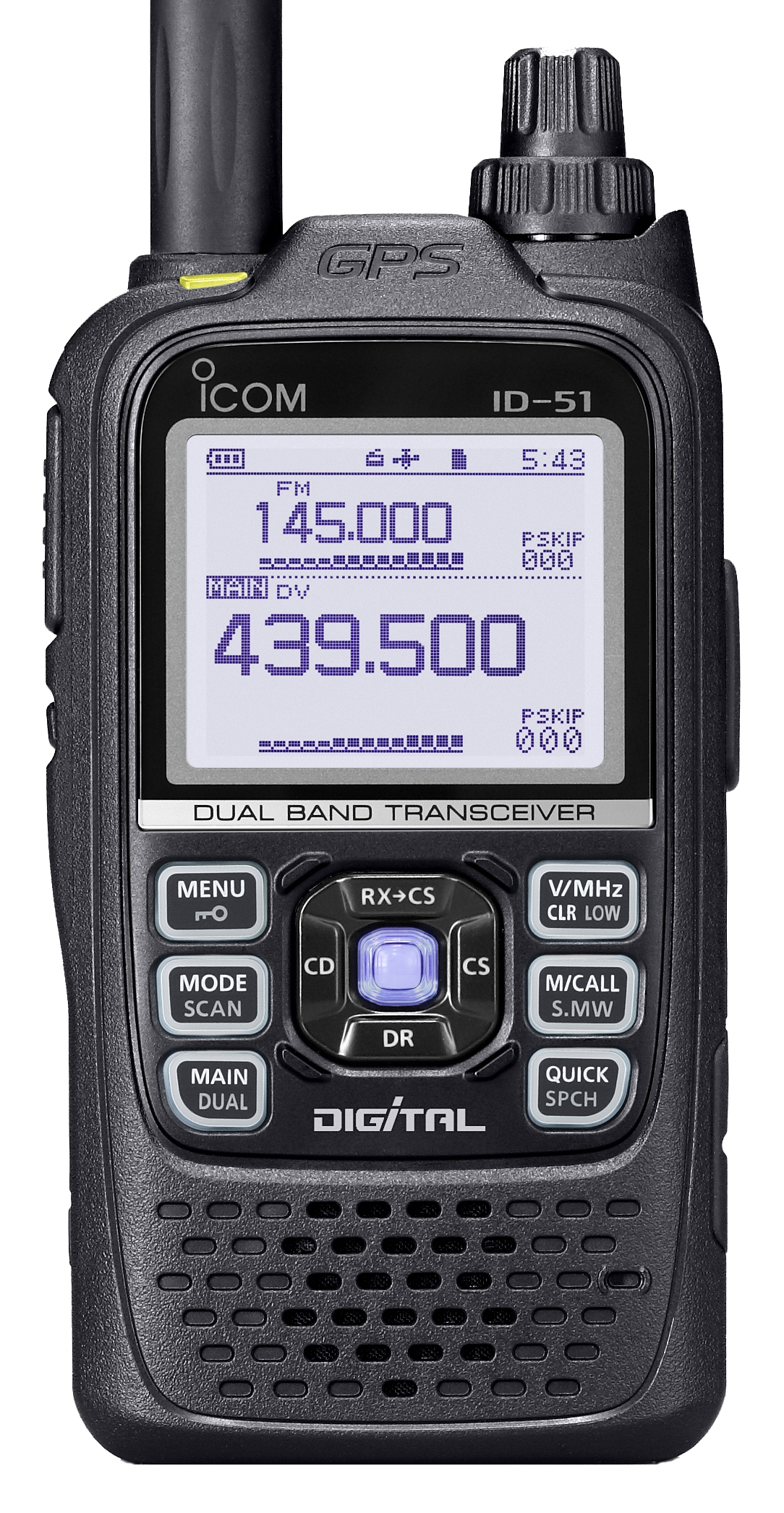

Icom ID-51A
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-148 / 430-450 MHz
RX: 0.52-1.710 / 76-108 / 108-174 / 380-479 MHz |
| Memories: |
1304 |
| Modes: |
FM/NFM and DV (GMSK 4.8 kbps voice)
Improved DR-mode
AM (RX Only) |
| RF Power output: |
Hi: 5 W
Mid: 2.5/2.5 W
Lo1: 500/500 mW
Lo2: 1/1 W
S-Lo: 100/100 mW |
| Frequency Steps: |
5, 6.25, 8.33, 9, 10, 12.5, 15, 20, 25, 30, 50, 100, 125, 200 KHz |
| Voltage: |
Internal: 5.5-7.4 VDC (Alkaline or battery pack)
External 10-16 VDC |
| Current Drain: |
RX: Max 450 mA
TX: Max 2.5 A |
| Aerial Input: |
50 ohms, SMA |
| Dimensions (W*H*D): |
58 x 105 x 26 mm |
| Weight: |
255 gr |
| Manufactured: |
Japan, 2012-20xx |
| Other: |
D-Star concept, GPS, CTCSS, DTCS
Micro SD Slot, 128*104 Dot Matrix Display |
| Related Documents: |
Pre-Release Brochure (479 KB) |
|
