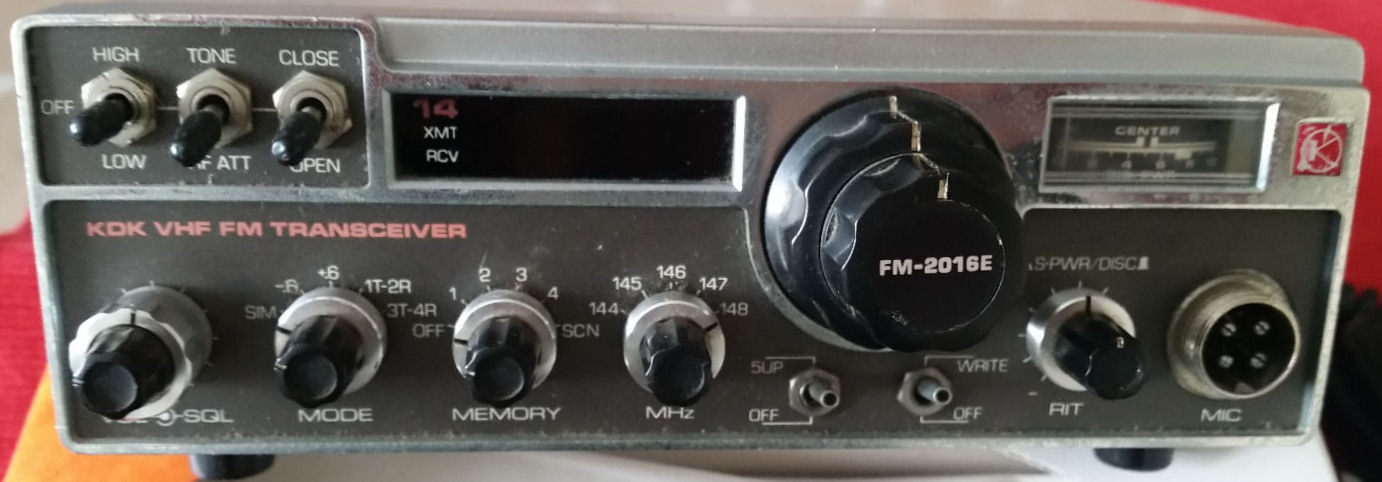

| Type: | Amateur VHF Transceiver |
| Frequency Range: | 144-146 MHz |
| Mode: | FM |
| RF Power output: | Hi: 15 W, Lo: 2 W |
| Voltage: | 13.8 VDC |
| Current Drain: | RX: 400-550 mA, TX: 1.25-2.5 A |
| Aerial Input: | 50 ohms, SO-239 |
| Dimensions (W*H*D): | 180*60*215 mm |
| Weight: | ? Kg |
| Manufactured: | Japan, 19xx-19xx |
| Other: | 4 memories. Scanning 4 ch/s |
| Related Documents: |
