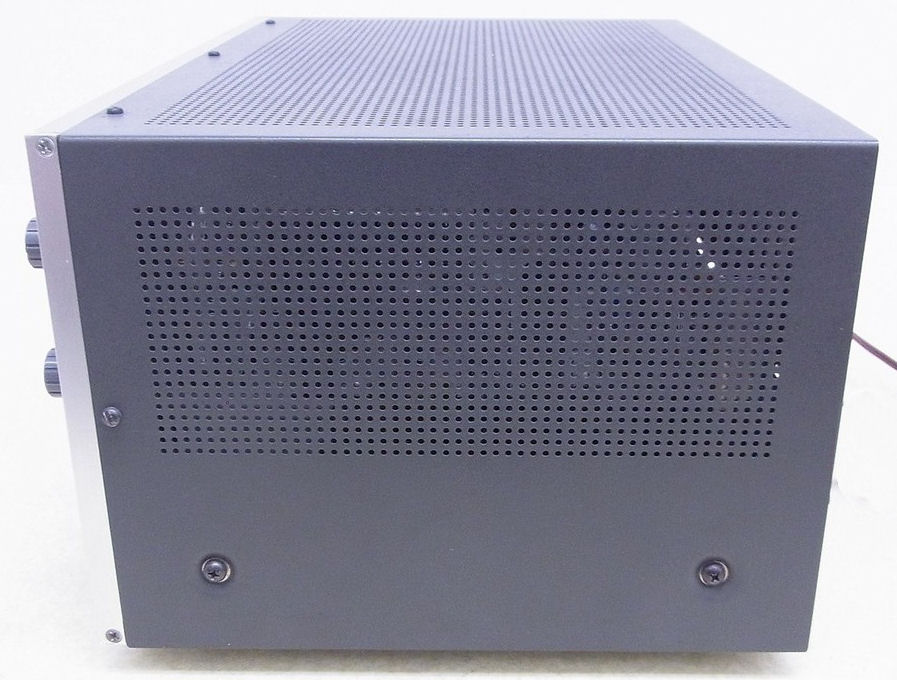

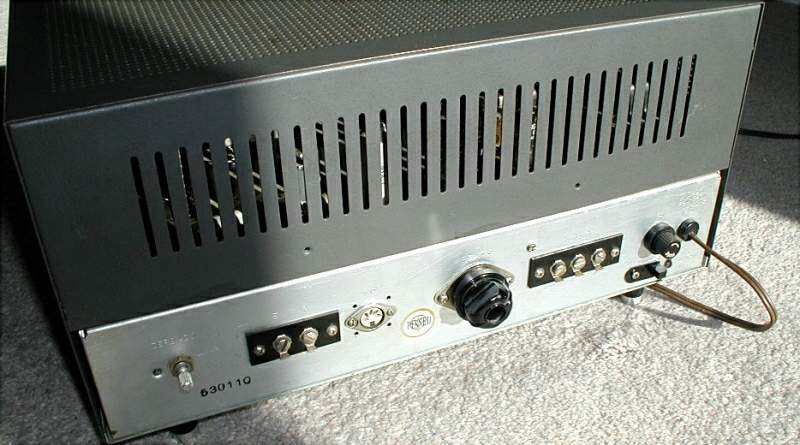

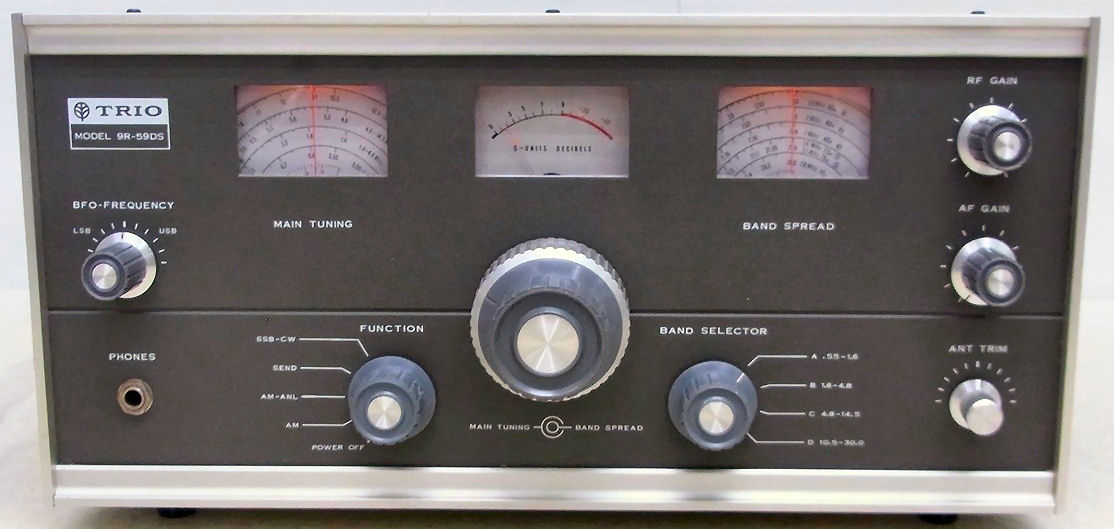

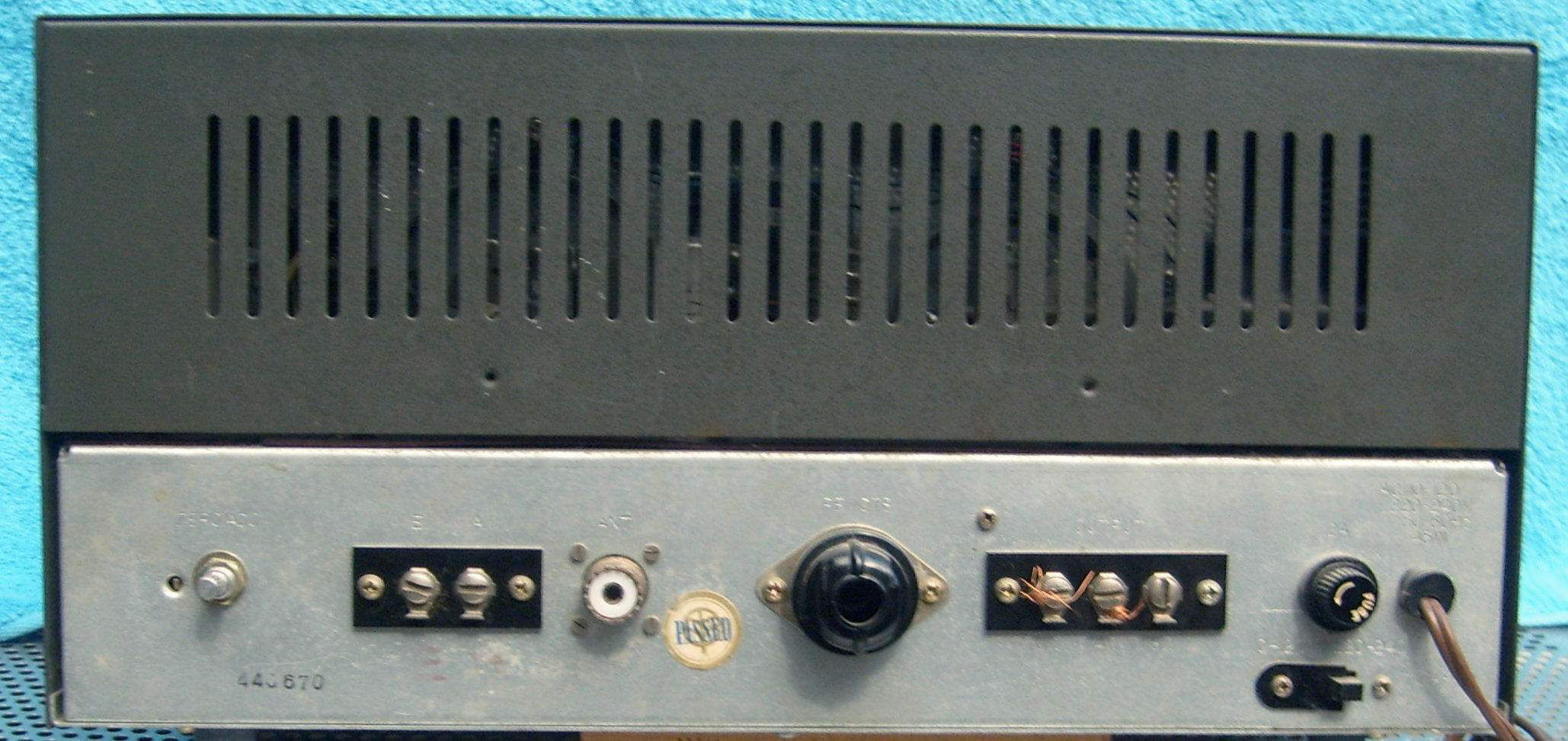

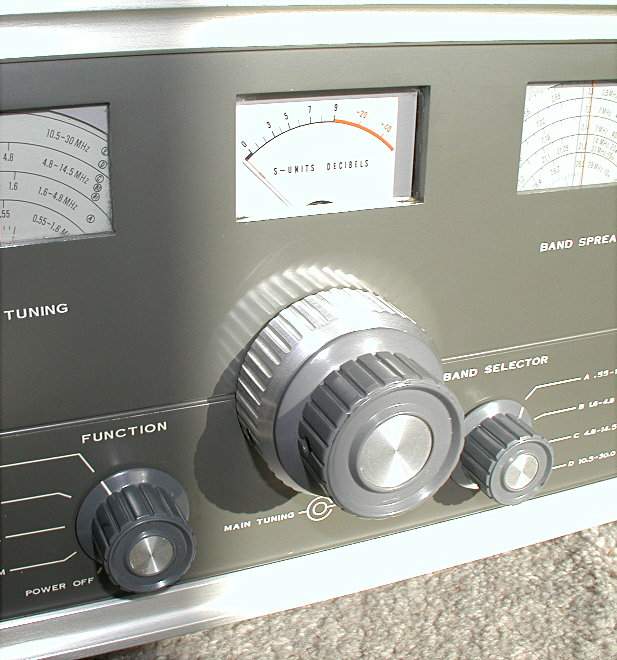

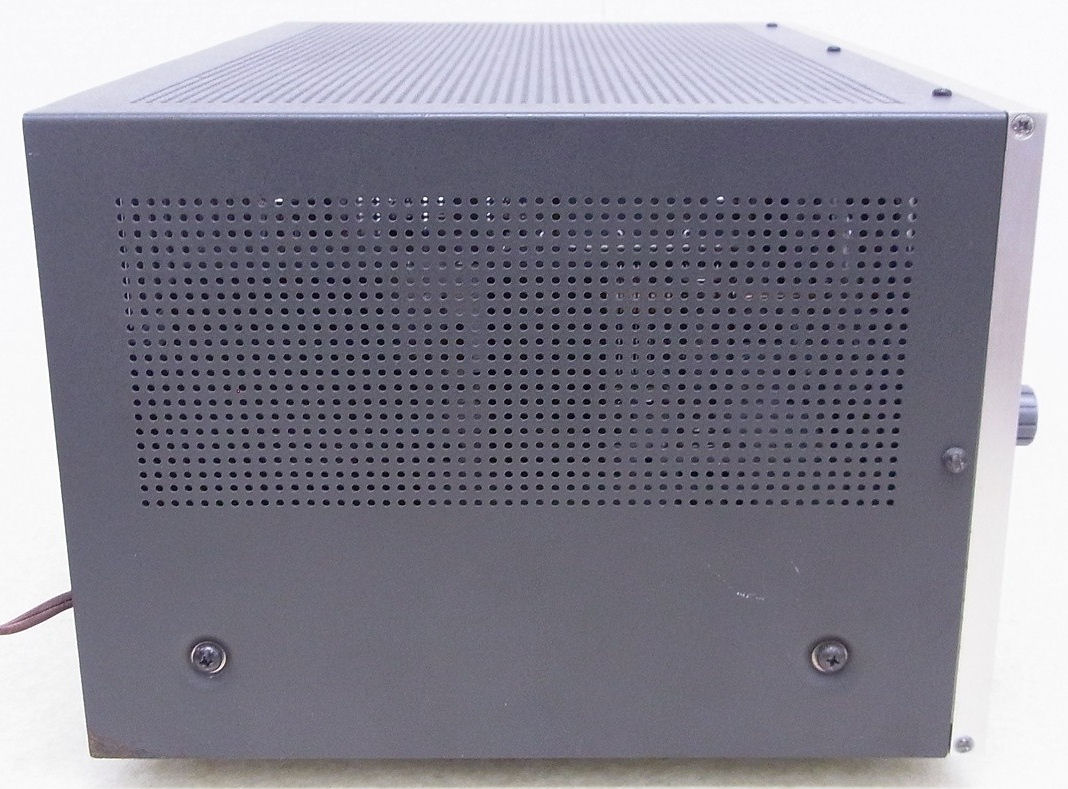

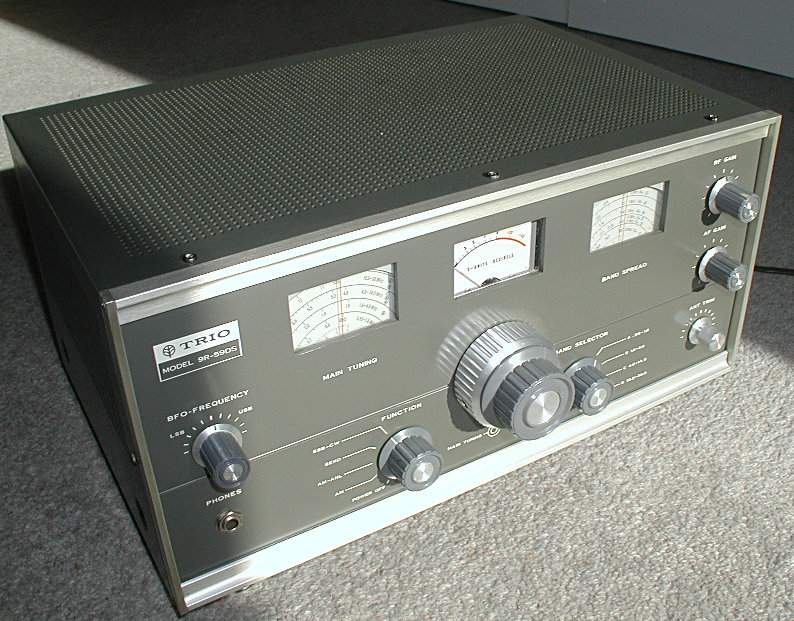

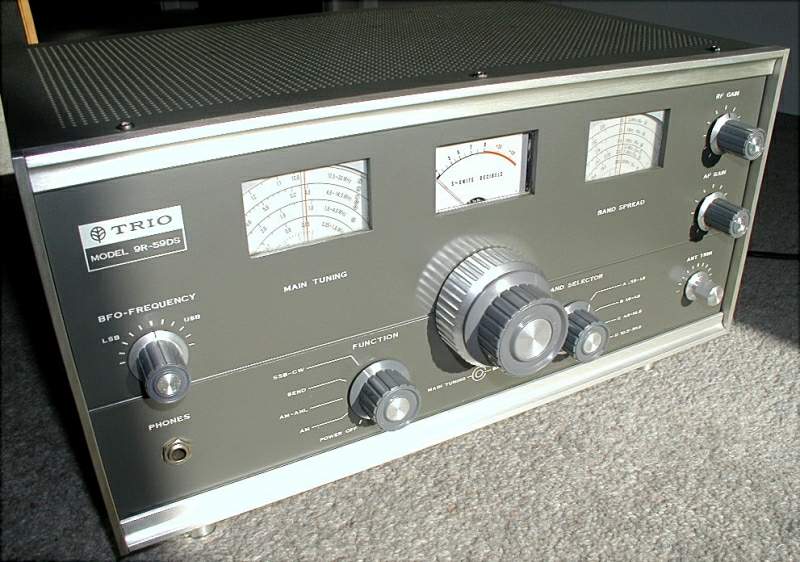

Trio 9R-59DS
| Type: |
HF Receiver |
| Frequency Range: |

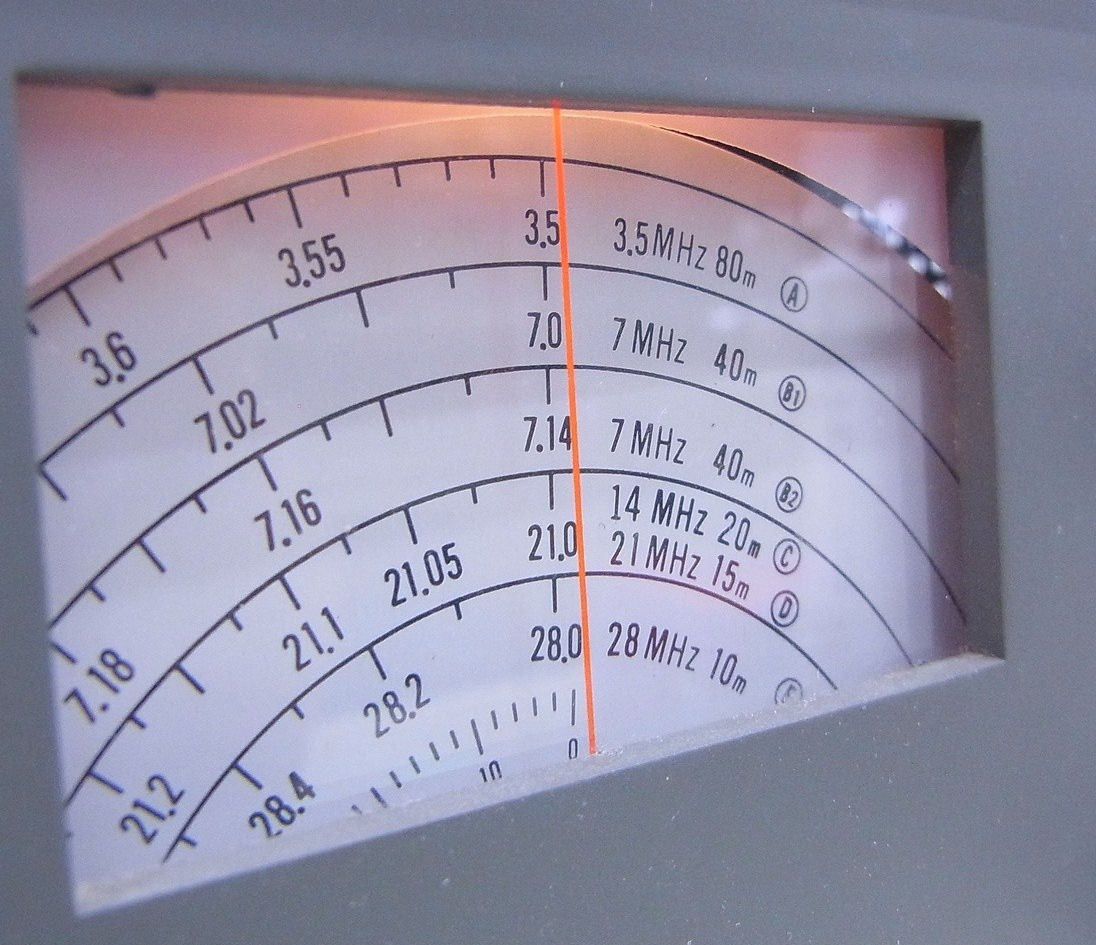

550kHz to 30MHz in 4 Bands
Band 1: 0.55-1.6 MHz
Band 2: 1.6-4.8 MHz
Band 3: 4.8-14.5 MHz
Band 4: 10.5-30 MHz |
| Modes: |
AM/SSB/CW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
? mA |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
380*250*189 mm |
| Weight: |
? Kg |
| Manufactured: |
Japan, 1968-1969 |
| Other: |
Valves |
| Related Documents: |
User Manual (2.04 MB)
Schematic (29.2 KB) |
 |
