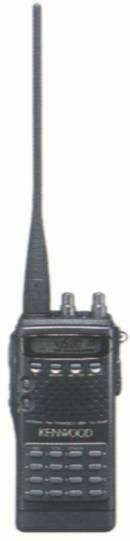

Kenwood TH-42E
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 2.5-5 W (depending on voltage)
Lo: 0.5 W
El: 30 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
5-16 VDC |
| Current Drain: |
RX: Max 45 mA
TX: Max 1.8 A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
56*116.5*24.5 mm (with PB-32) |
| Weight: |
290 gr (with PB-32, antenna, handstrap and belt hook) |
| Manufactured: |
1994-19xx |
| Other: |
41 Memories |
| Related Documents: |
User Manual (2.63 MB) |
|
