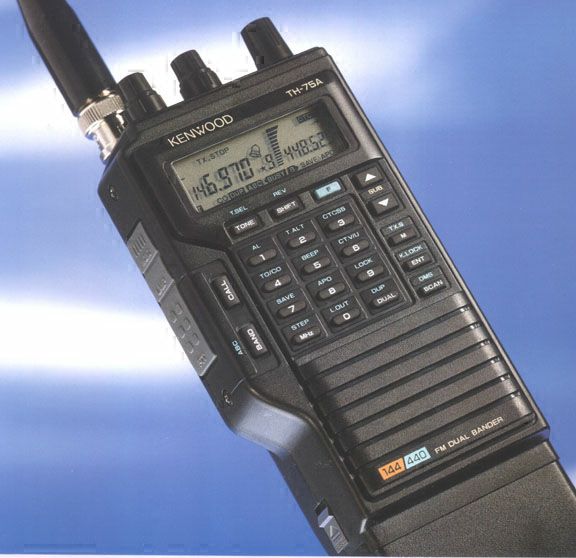

Kenwood TH-75A
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-148 / 438-450 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 5/5 W
Lo: 0.5/0.5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
6.3-16 VDC |
| Current Drain: |
RX: 12-100 mA
TX: Max 1.5 A |
| Aerial Input: |
50 ohms, BNC |
| Dimensions (W*H*D): |
58*179*30 mm |
| Weight: |
520 gr (with PB-6) |
| Manufactured: |
1989-19xx |
| Other: |
10+10 memories. Twin RX |
| Related Documents: |
User Manual (1.62 MB) |
|
