| Type: |

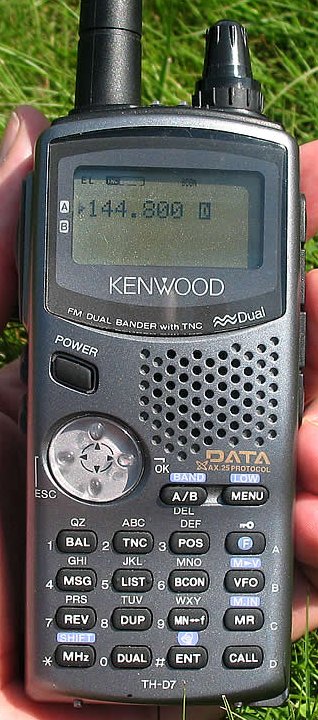

Amateur VHF/UHF Transceiver |
| Frequency Range: |
TX: 144-146 / 430-440 MHz
RX: 118-136 / 136-174 / 400-480 MHz |
| Modes: |
TX: FM
RX: AM/FM |
| RF Power output: |
Hi: 2.5-6 / 2.2-6 W (depending on voltage)
Lo: 0.5 / 0.5 W
El: 50 / 50 mW |
| Sensitivity: |
0.18 uV (12 dB SINAD)
(VHF sub-band: <0.28 uV for 12 dB SINAD) |
| Selectivity: |
12 KHz (-6 dB), 28 KHz (-40 dB) |
| Image rejection: |
N/A |
| Voltage: |
6 or 9 V battery pack or 5.5-16 VDC external |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
54*119.5*35.7 mm (with PB-38) |
| Weight: |
340 gr (with PB-38) |
| Manufactured: |
Japan, 1999-200x (Discontinued) |
| Other: |
200 memories. Built-in TNC. APRS. |
