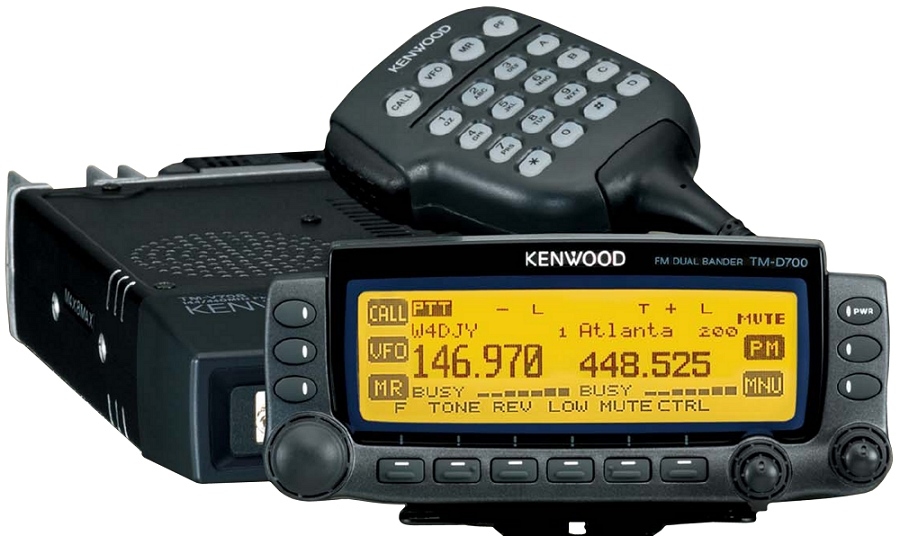

Kenwood TM-D700A
| Type: |
Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-148 / 440-450 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 50/35 W
Mid: 10/10 W
Lo: 5/5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1 A
TX: Max 11.5 A |
| Aerial Input: |
50 ohms, N |
| Dimensions (W*H*D): |
Body: 140*40*195 mm, Panel: 140*60*34 mm |
| Weight: |
Body: 1.2 Kg, Panel: 180 gr |
| Manufactured: |
Singapore, 2000-200x |
| Other: |
Built-in TNC 1K2/9K6, APRS, DX-info, BBS. Twin RX. |
| Related Documents: |
User Manual (2.7 Mb)
Specialized Communications Manual (860 Kb) |
|
