| Type: |

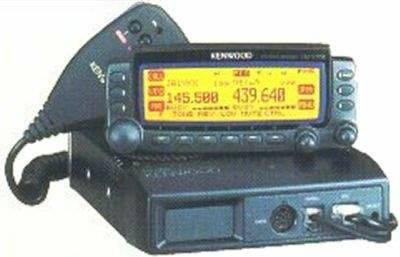

Amateur VHF/UHF Transceiver |
| Frequency Range: |
144-146 / 430-440 MHz (Asia) |
| Modes: |
FM |
| RF Power output: |
Hi: 20/20 W
Mid: 10/10 W
Lo: 5/5 W |
| Sensitivity: |
0.16 uV (12 dB SINAD) |
| Selectivity: |
12 KHz (-6 dB), 28 KHz (-40 dB) |
| Image response: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: Max 1 A
TX: Max ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
Transceiver: ? mm
Panel: 140*60*34 mm |
| Weight: |
Transceiver: 1.2 Kg
Panel: 0.18 Kg |
| Manufactured: |
2002-200x |
| Other: |
200 memories. Alpha tags. CTCSS/DTSS. Twin RX |
