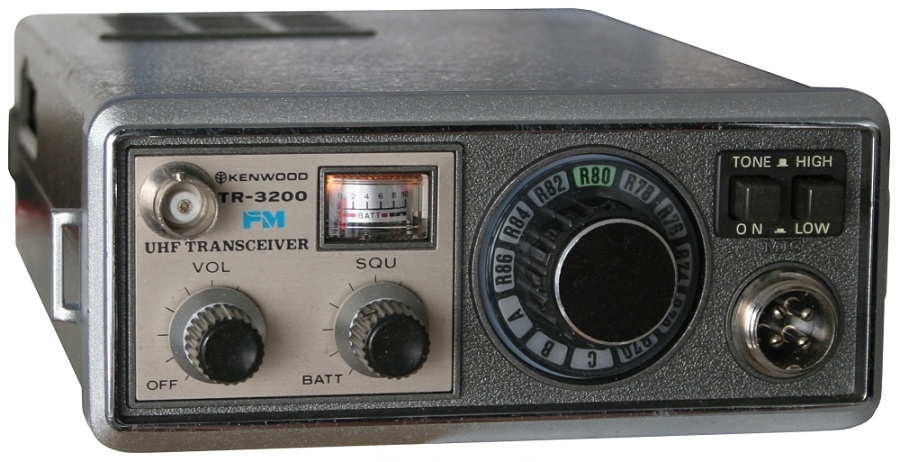

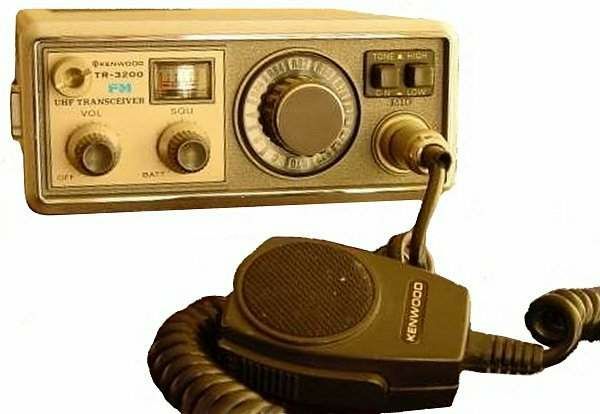

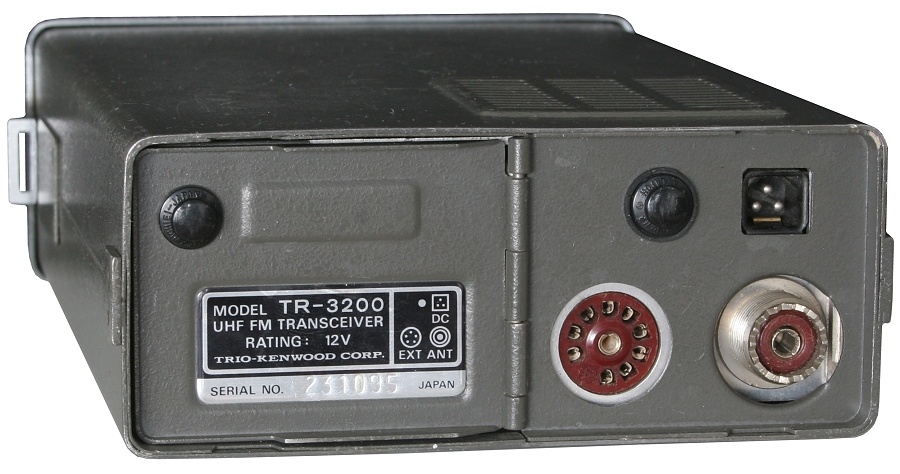

Kenwood TR-3200
| Type: |
Amateur UHF Transceiver |
| Frequency Range: |
430-440 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 2 W
Lo: 400 mW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12 VDC |
| Current Drain: |
RX: ? mA
TX: Max ? A |
| Aerial Input: |
50 ohms or whip |
| Dimensions (W*H*D): |
135*58*191 mm |
| Weight: |
1.6 Kg |
| Manufactured: |
Japan, 197x-19xx |
| Other: |
12 channels. XTAL |
