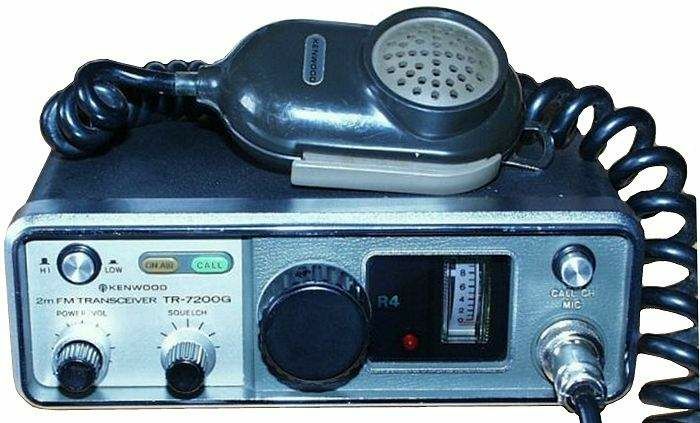

Kenwood TR-7200G
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
FM |
| RF Power output: |
Hi: 10 W
Lo: 1 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 500 mA (no input)
TX: Max 3 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
180*60*240 mm |
| Weight: |
2.5 Kg |
| Manufactured: |
197x-19xx |
| Other: |
22 channels. XTAL
Same As The Drake TR-72 |
| Related Documents: |
User Manual (923 KB) |
|
