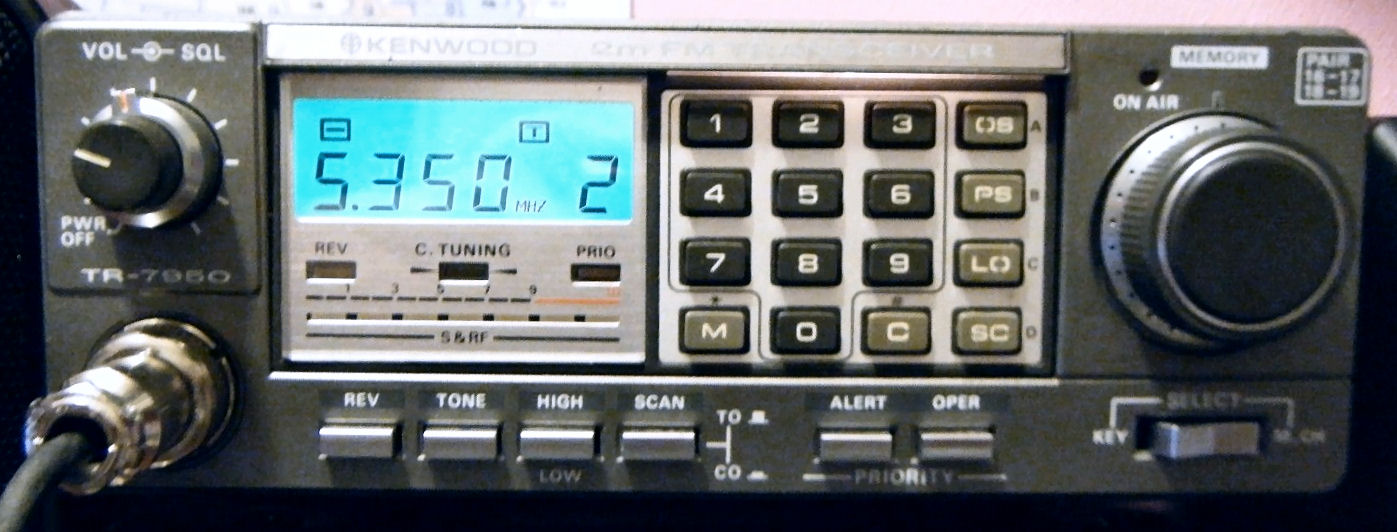

Kenwood TR-7950
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz (Europe)
142-149 MHz (USA) |
| Modes: |
FM |
| RF Power output: |
Hi: 45 W
Lo: 5 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 0.5-0.9 A
TX: 3-9.5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
175*64*220 mm |
| Weight: |
1.9 Kg |
| Manufactured: |
1983-19xx |
| Other: |
|
| Related Documents: |
|
|
|
