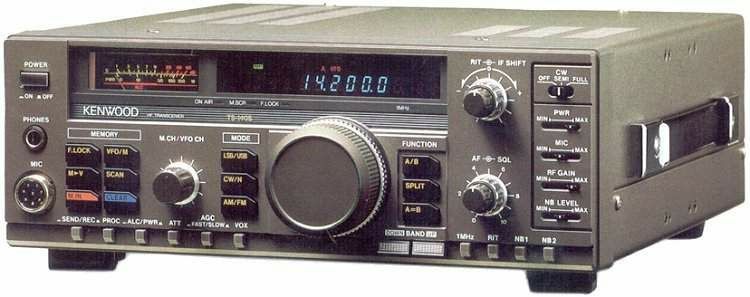

Kenwood TS-140S
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.05-35 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
AM: Max 40 W
FM: Max 50 W
SSB/CW: Max 100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12-16 VDC |
| Current Drain: |
RX: 1.5 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
270*96*270 mm |
| Weight: |
6.1 Kg |
| Manufactured: |
1987-19xx |
| Other: |
31 memories. |
