| Type: |

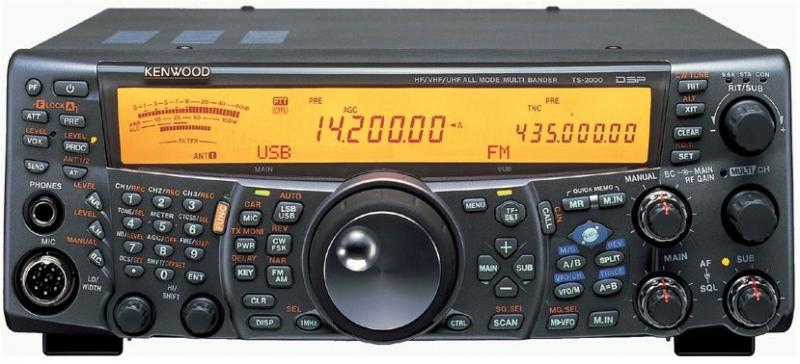

Amateur HF/VHF/UHF Transceiver |
| Frequency Range: |
30kHz-60MHz, 142-152MHz, 420-450, (1240-1300MHz optional) |
| Independent sub-band: |
118-174MHz, 220-512MHz (FM/AM only) |
| Modes: |
SSB/CW/FSK/FM/AM |
| RF Power output: |
HF/50/144MHz 100W, 440MHz 50W |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: ? A |
| Aerial Input: |
50 ohms |
| Dimensions (W*H*D): |
281*107*371 mm |
| Weight: |
7.8 Kg |
| Manufactured: |
2000-20xx |
| Other: |
DSP. General coverage RX
Built-in 1K2/9K6 TNC.
Auto-AT on HF/6 m. DX-Cluster functions.
Can also be operated via computer or optional RC-2000 control head |
| Related Documents: |
User Manual (2.75 MB)
Brochure (1.3 MB)
Modifications (8.73 KB) |
