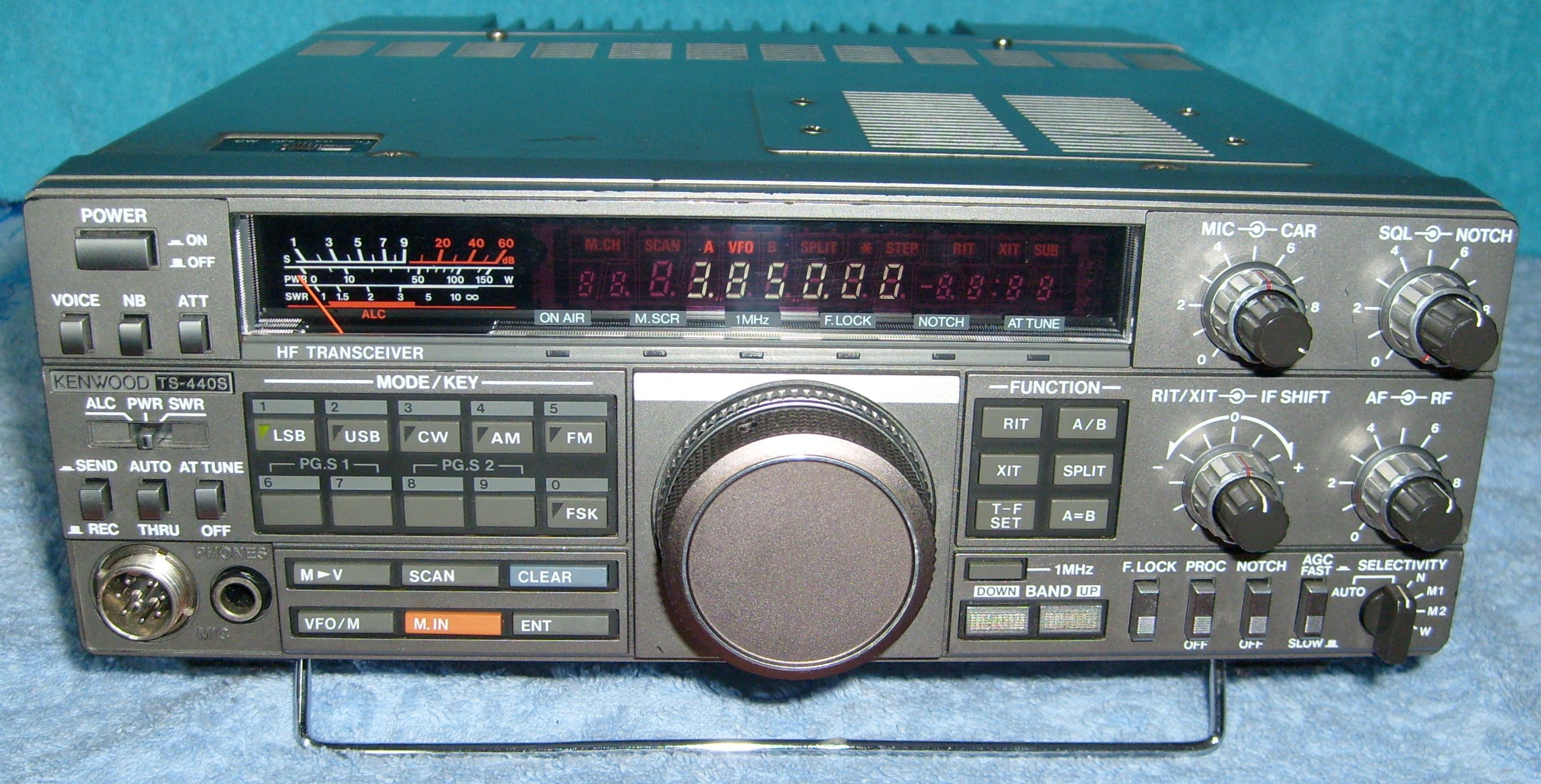

Kenwood TS-440S
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.15-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
Max 100 W (AM: 50 W) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: 1.9 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
270 x 96 x 313 mm |
| Weight: |
6.3 Kg |
| Manufactured: |
1986-19xx |
| Other: |
Auto-AT option. |
| Related Documents: |
User Manual (4.91 MB)
Service Manual (24.5 MB) |
 |
