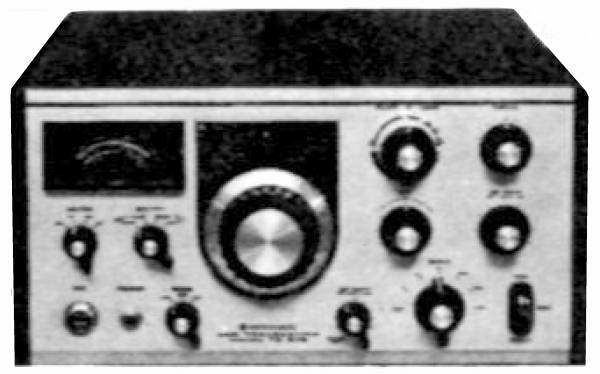

TS-515
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-80 m |
| Modes: |
SSB/CW |
| RF Power output: |
80-100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
330*195*355 mm |
| Weight: |
9.5 Kg |
| Manufactured: |
197x-197x |
| Other: |
2 x 6146B finals. PSU is in a separate cabinet |
| Related Documents: |
|
|
