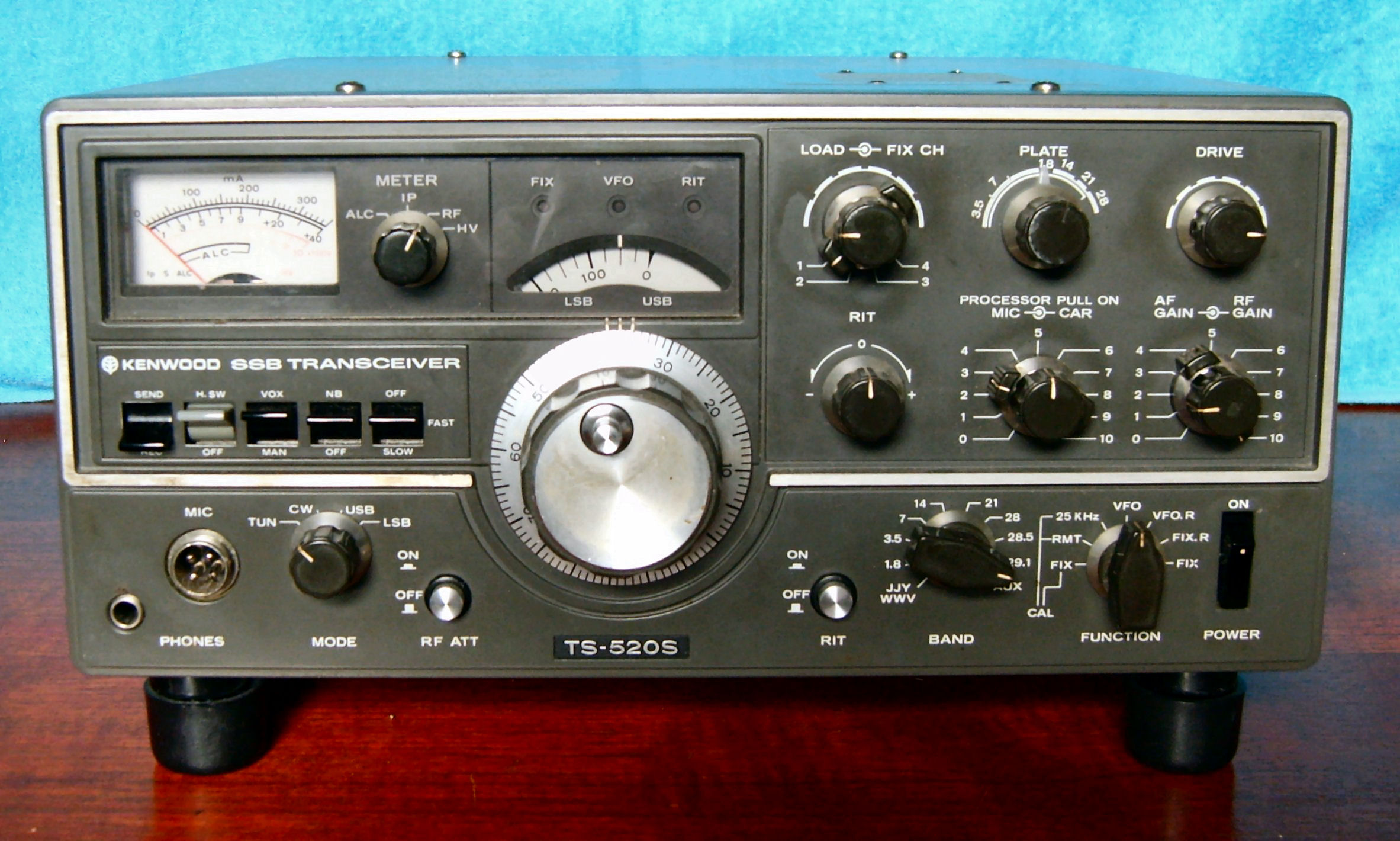

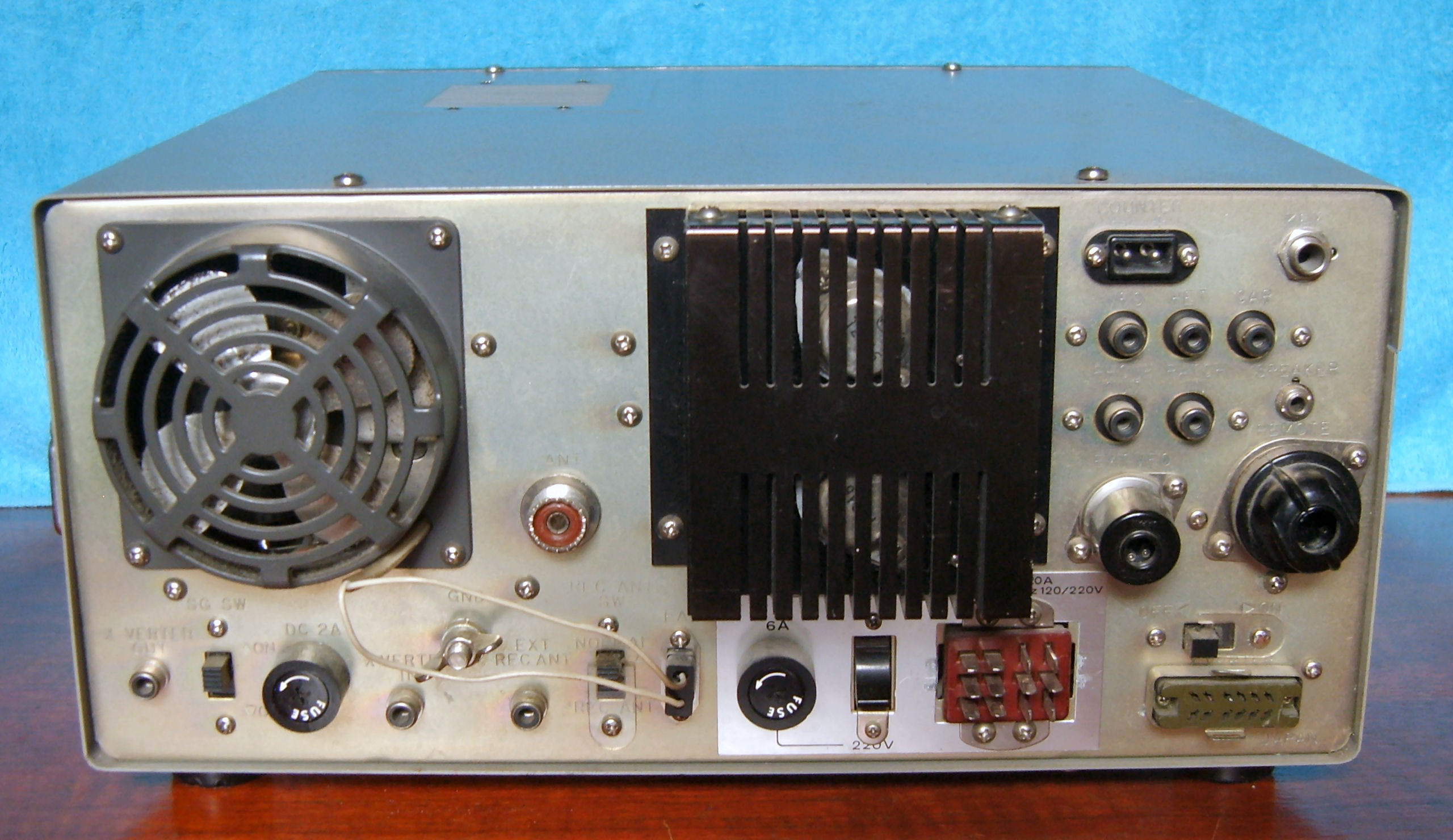

Kenwood TS-520S
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
10-160 m |
| Modes: |
SSB/CW |
| RF Power output: |
Max 100 W |
| Sensitivity: |
0.25 uV S+N/N 10 dB or more |
| Selectivity: |
SSB: 2.4 KHz (-6 dB), 4.4 KHz (-60 dB)
CW: 0.5 KHz (-6 dB), 1.5 KHz (-60 dB) with optional CW filter |
| Image rejection: |
Better than 50 dB |
| Voltage: |
13.8 VDC or Mains |
| Current Drain: |
RX: 5 A (heaters on), 0.6 A (heaters off)
TX: Max 15 A |
| Aerial Input: |
50-75 ohms, SO-239 |
| Dimensions (W*H*D): |
333*153*335 mm |
| Weight: |
16 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
3 Valves |
| Related Documents: |
User Manual (3.69 MB) |
 |
