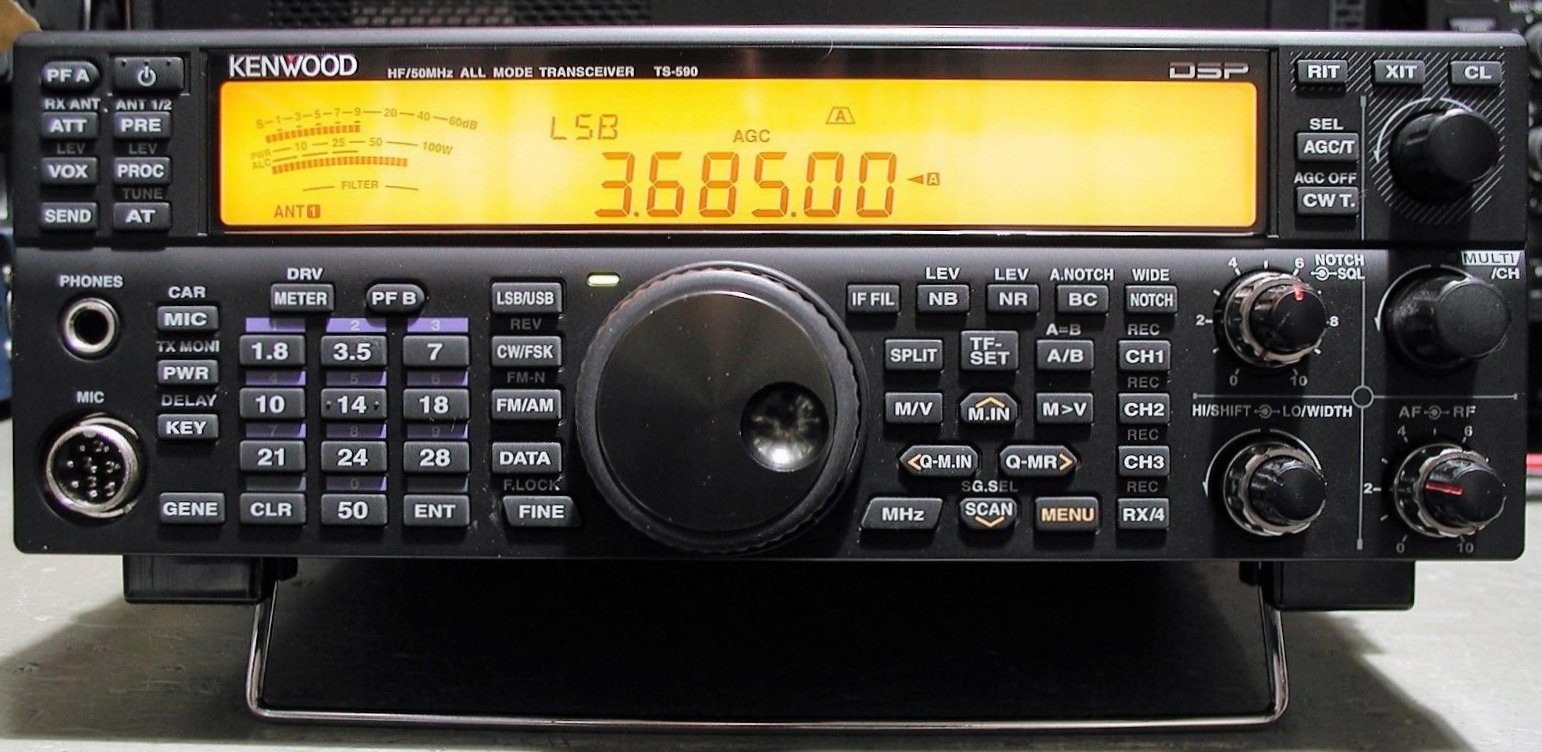

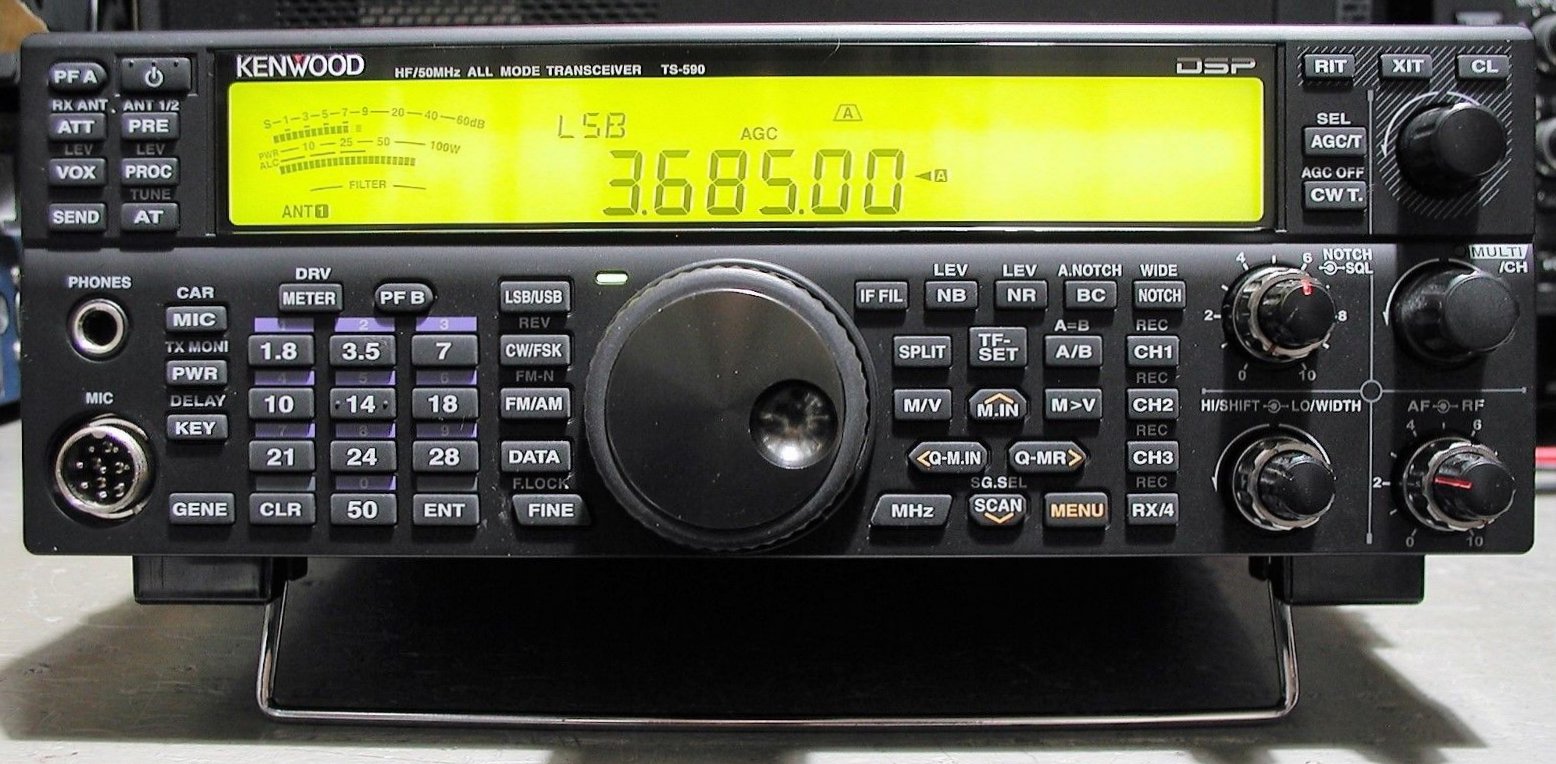

Kenwood TS-590S
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 50-54 MHz
RX: 0.5-30 MHz / 50-54 MHz |
| Modes: |
AM/FM/SSB/CW/FSK |
| RF Power output: |
Max 100/100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
270*96*271 mm |
| Weight: |
? Kg |
| Manufactured: |
2010-20xx |
| Other: |
32-bit DSP |
| Related Documents: |
|
 |
