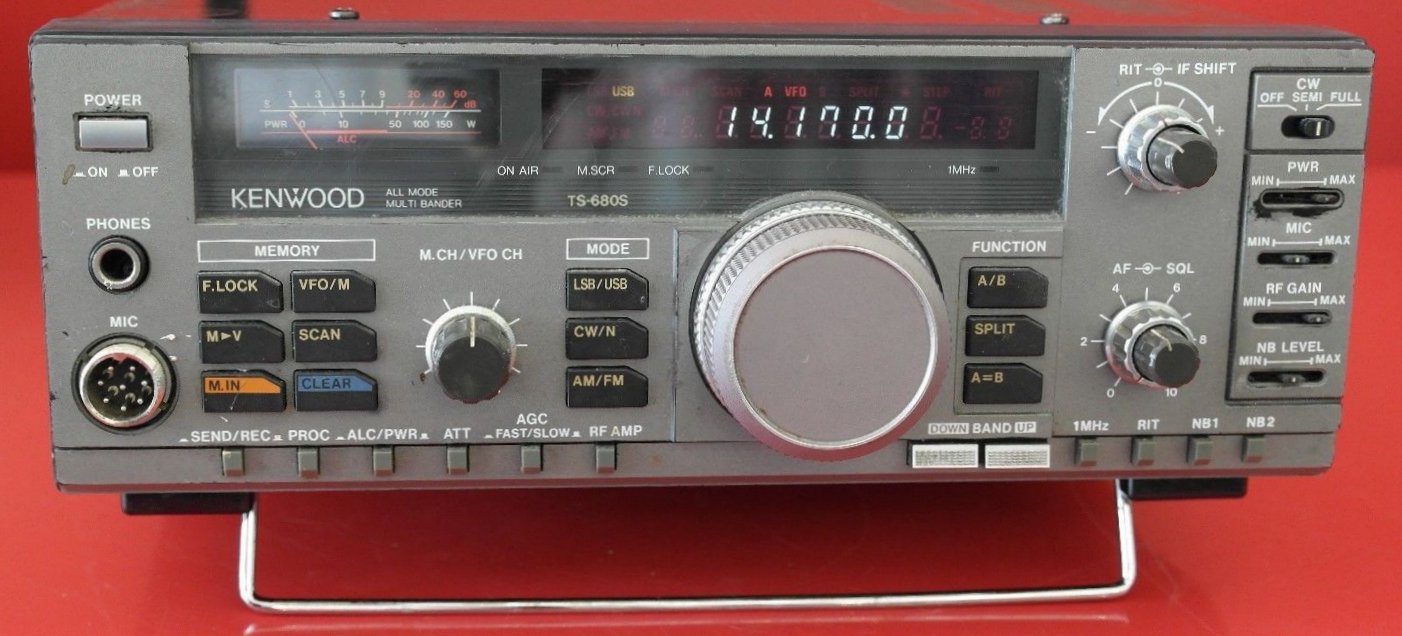

Kenwood TS-680S
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC / 6 m
RX: 0.5-30 / 50-54 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
AM: 40 W
FM: 50 W
SSB/CW: 100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
12-16 VDC |
| Current Drain: |
RX: 1.5 A
TX: Max 20 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
270*96*270 mm |
| Weight: |
6.1 Kg |
| Manufactured: |
1989-199x |
| Other: |
|
| Related Documents: |
|
 |
