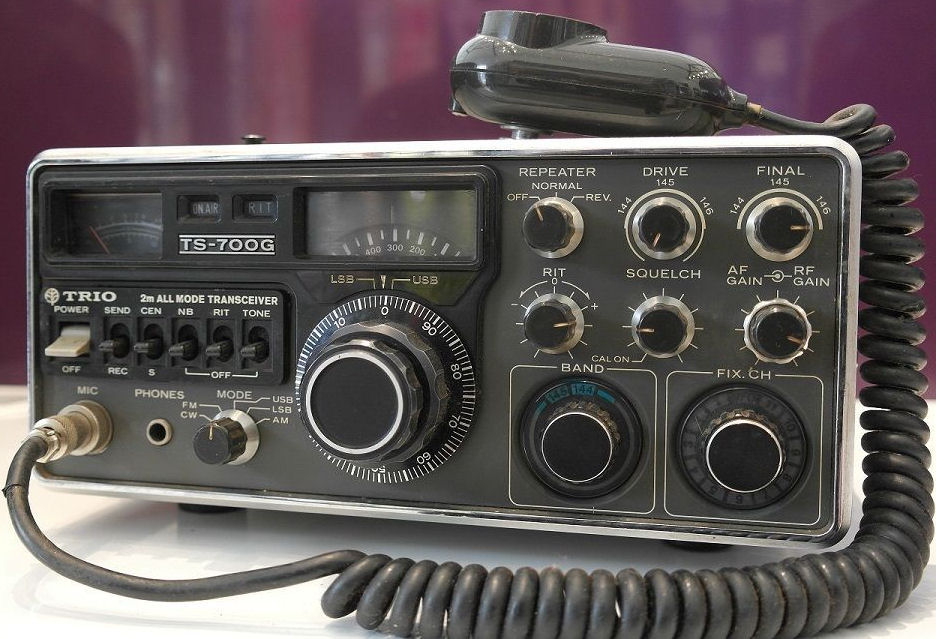

Kenwood TS-700G
| Type: |
Amateur VHF Transceiver |
| Frequency Range: |
144-146 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
FM/SSB/CW: 10 W
AM: 3 W |
| Sensitivity: |
AM: <2 uV (10 dB S/N)
FM: <1 uV (26 dB S/N)
SSB/CW: <0.5 uV (10 dB S/N) |
| Selectivity: |
AM/SSB/CW: <4.8 KHz (-60 dB)
FM: <40 KHz (-60 dB) |
| Image rejection: |
>60 dB |
| Voltage: |
12-16 VDC or Mains 120/240 VAC |
| Current Drain: |
RX: 0.8-1A
TX: Max 4 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
278*124*320 mm |
| Weight: |
11 Kg |
| Manufactured: |
Japan, 197x-197x |
| Other: |
|
| Related Documents: |
|
 |
