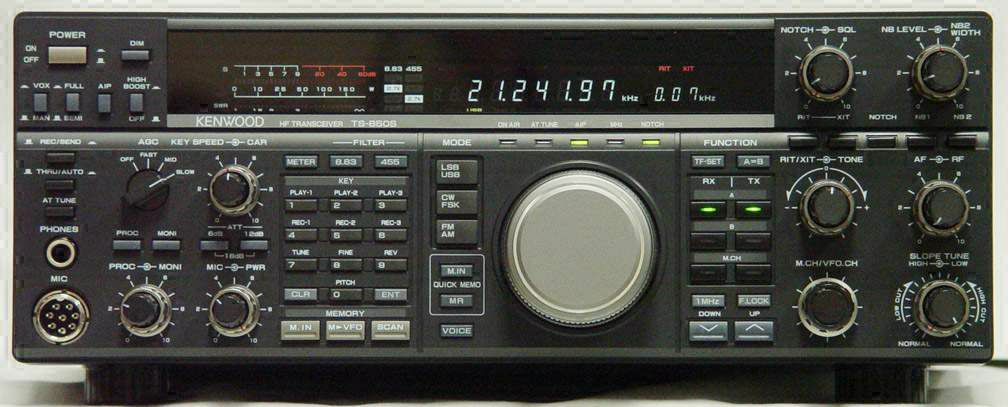

Kenwood TS-850S
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz |
| Modes: |
AM/FM/SSB/CW |
| RF Power output: |
Max 100 W |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC |
| Current Drain: |
RX: ? A
TX: 20.5 A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
330*120*334 mm |
| Weight: |
11 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
100 memories |
