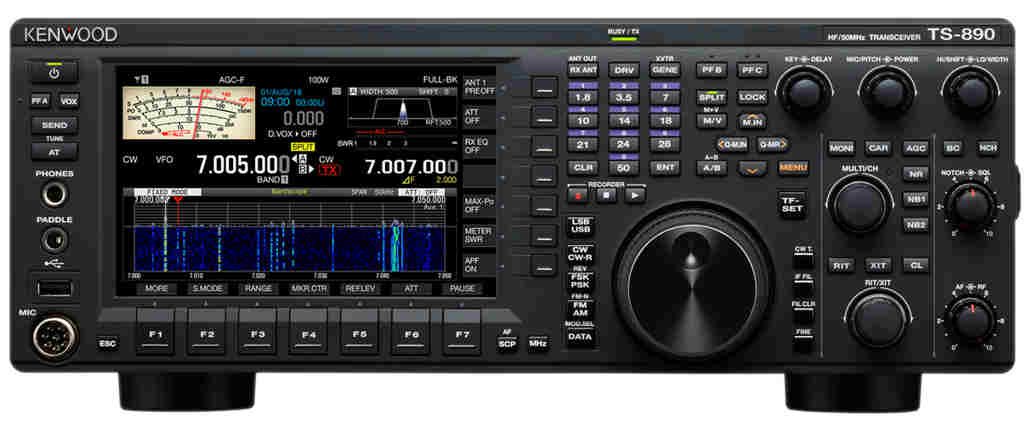

Kenwood TS-890S
| Type: |
Amateur HF Transceiver |
| Frequency Range: |
TX: 4/6/10/12/15/17/20/30/40/60/80/160 m Bands
RX: 0.13-30/50-54/70.0-70.5 MHz (VFO: Continuous 30 kHz ~ 74.8 MHz) |
| Modes: |
AM/FM/SSB/CW/FSK/PSK |
| RF Power output: |
Max 100 W (HF/6 m)
Max 50 W (4 m) |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
13.8 VDC +/- 15% |
| Current Drain: |
RX: 2.5 A
|
| Aerial Input: |
50 ohms, 2x SO-239 |
| Dimensions (W*H*D): |
409.6 x 158.3 x 387.4 mm |
| Weight: |
15.6 Kg |
| Manufactured: |
2018-20xx |
| Other: |
7" color TFT, Auto-ATU |
| Related Documents: |
Instruction Manual (20.61 MB)
Schematic (3.38 MB)
Sales Brochure (3.66 MB) |
 |
